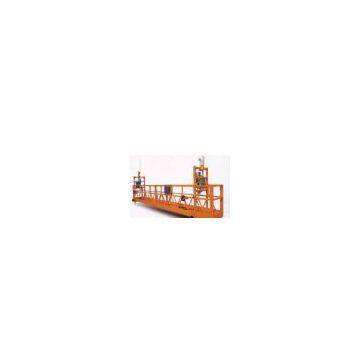

Moveable End Stirrup Suspended Working Platform ZLP630 ZLP800 ZLP1000
- T/T L/C D/P D/A
- 7 days
You May Like
-
ZLP100 3kN Lifting Force Single Suspended Working Platform With 8-9m/min
-
ZLP250 9.6 M/min Safe Suspended Working Platform for Capacity 250kg
-
ZLP1000 1000 kg Safe Suspended Working Platform Scaffold Systems
-
ZLP800 Aluminum Suspended Working Platform With Steel Rope 6*19W+IWS-8.6
-
ZLP630 9.6 M/min Temporarily Installed Suspended Working Platform
-
ZLP500 1.1 KW Motor Power 500 kg Lightweight Suspended Working Platform
Product Details
| Brand Name | SHENXI | Place of Origin | China | |
| Model Number | CE,SGS |
Product Description
Certification:ZLP500-1000
Moveable End Stirrup Suspended Working Platform ZLP630 ZLP630 ZLP630
Descrition:
Special Suspended Platform, also called Special Temporary Access Equipment, is a mobile modular gantry specially designed to meet specific tasks and requirements.
These include: U Type Suspended Platform, Exterior Suspended Platform, Pin-style Platfrom, Moveable End Stirrup Platform, Circle Platform, Gondola, Suspended Chair, Chimney Suspended Platform, and Double Deck Platform.
Applications:
–construction and maintenance work for the building of various profiles
–used for cleaning, decorating, coating on the exterior walls of high buildings
–ideal for construction work in the difficult to access areas, such as chimney,
boiler, barn and pit, etc.
Specifications:
|
Type |
ZLP500 |
ZLP630 |
ZLP800 |
ZLP1000 |
|||
|
Rated Capacity |
500kg |
630kg |
800kg |
1000kg |
|||
|
Rated Lifting Speed |
9-11m/min |
9-11m/min |
8-10m/min |
8-10m/min |
|||
|
Wire Rope Diameter |
8.3mm |
8.3mm |
8.6mm |
8.6mm |
|||
|
Hoist |
Type |
LTD5 |
LTD6.3 |
LTD8 |
LTD10 |
||
|
Rated Lifting Force |
4.9kN |
6.17kN |
7.84kN |
9.8kN |
|||
|
Motor |
Power |
1.1kW×2 |
1.5kW×2 |
2.2kW×2 |
3.0kW×2 |
||
|
Voltage |
380V |
380V |
380V |
380V |
|||
|
Frequency |
50Hz |
50Hz |
50Hz |
50Hz |
|||
|
Rotation Speed |
1420rpm |
1420rpm |
1420rpm |
1420rpm |
|||
|
Brake Torque |
15Nm |
15Nm |
30Nm |
30Nm |
|||
|
Safety Lock |
Type |
LSB30II |
LSB30II |
LSB30II |
LSB30II |
||
|
Permission Force of Impact |
30kN |
30kN |
30kN |
30kN |
|||
|
Locking Cable Distance |
<100mm |
<100mm |
<100mm |
<100mm |
|||
|
Platform Size(mm) |
5000×690×1460 |
6000×690×1460 |
7500×690×1460 |
7500×690×1460 |
|||
|
Weight of Suspens | |||||||
