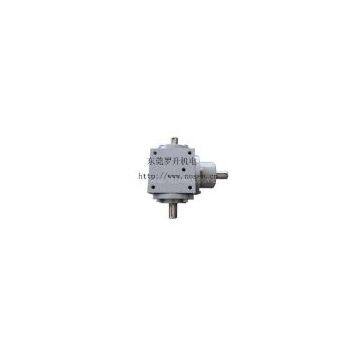

Bevel Gear Unit
US$ 150 - 5000
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | NOSEN | Place of Origin | China | |
| Model Number | RNV-065~RNV-260 |
Product Description
Bevel Gearbox Detailed Informations:
Models:
RNV-065, RNV-090, RNV-120, RNV-160, RNV-200, RNV-260
Configurations:
spiral bevel gears,bearings,housing,oil sealing,input and output shafts etc.
Features:
1. Function: right angles change transmission directions
2. 2 ways,3ways,4 ways gearboxes are available
3. Compared to worm gear reducer, spiral bevel gear box is of flexiable operational capacity, high transmission torque and save more money.
4. Speed Ratio: 1:1,2:1. Special ratio,following clients' orders
5. Transmission Efficiency: 95%
Materials:
1.Spiral bevel gears: alloy steel,case hardened,be of high rigidity and wear risistance
2.Bearings: taper roller bearings, bear larger torque
3.Gearbox: cast iron, six faces of gearbox are machined by milling machine,gloss surfaces
4.Input&Output shaft: S45C,heat treated
Use Details:
Gear Oil: HD320~680
Max Revolutions: 1450 rpm
Ambient Temperature: -20ºC~+80ºC, special temperature,consult our engineers
Noise Level: less than 80 dB
Temperature Level: less than 50ºC
Test Equipments: noise meter and infrared thermometer
RNV-065, RNV-090, RNV-120, RNV-160, RNV-200, RNV-260
Configurations:
spiral bevel gears,bearings,housing,oil sealing,input and output shafts etc.
Features:
1. Function: right angles change transmission directions
2. 2 ways,3ways,4 ways gearboxes are available
3. Compared to worm gear reducer, spiral bevel gear box is of flexiable operational capacity, high transmission torque and save more money.
4. Speed Ratio: 1:1,2:1. Special ratio,following clients' orders
5. Transmission Efficiency: 95%
Materials:
1.Spiral bevel gears: alloy steel,case hardened,be of high rigidity and wear risistance
2.Bearings: taper roller bearings, bear larger torque
3.Gearbox: cast iron, six faces of gearbox are machined by milling machine,gloss surfaces
4.Input&Output shaft: S45C,heat treated
Use Details:
Gear Oil: HD320~680
Max Revolutions: 1450 rpm
Ambient Temperature: -20ºC~+80ºC, special temperature,consult our engineers
Noise Level: less than 80 dB
Temperature Level: less than 50ºC
Test Equipments: noise meter and infrared thermometer
