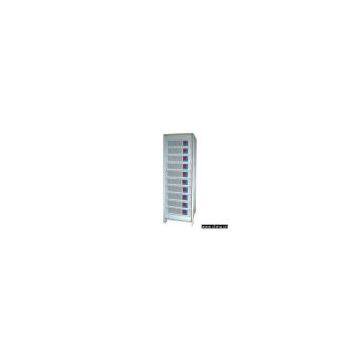

Sell Electroplating Switching Power Supply (with Big Power & High Frequency )

Place of Origin	China

Model No.:
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:L/C, T/T
Certification:
Description:Features: 1) Has output short-circuit, over-heat, current limiting and protection functions 2) Single chip microcomputer intelligently controls RS232, RS485 computer communication interface 3) After parallel connection and expansion, the source voltage effect and load effect of the man-power supply system can be kept within the required technical indexes 4) The output current of each module power supply is basically equal (current sharing precision ≤ 5%) 5) Redundant technique is used, the whole power supply system can maintain sufficient load capacity in its output even if a unit is damaged and so to enhance the reliability of the whole set of power supply 6) Non-master control method is used in the system power supply, the entering and exit of module power supply will not affect the normal output of system power supply 7) Each module power supply can be used independently or connected in parallel with other ones, having excellent transient characteristics Specifications: 1) Dimension (W x D x H): 430 x 465 x 133 2) Weight: 26.3kg 3) Input voltage range: 330 - 450VAC (rated output) 4) Efficiency: ≥83% 5) Output ripple: <15mVp-p (300Hz) 6) Power factor value: ≥0.9 (full load) 7) Constant voltage precision: ≤1% 8) Constant current precision: ≤2% 9) Meter precision: volt meter 0.1V, ampere meter 1A 10) Can be used for large-current low-ripple electrolyte process in copper foil factories and electrolysis of non-ferrous metals, such as aluminum, magnesium and zinc and hard chrome decoration process with low ripples
