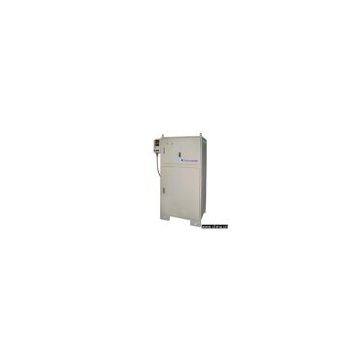

Sell High Frequency Electroplating Switching Power Supply

Place of Origin	China

Model No.:
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:L/C, T/T
Certification:
Description:Features: 1) Small size, light weight, high effect, high control accuracy 2) High-frequency pulse current output, suitable for small work piece plating such as non-ferrous metals and alloy. With high penetration and good attachment, it can promote the surface brightness of the plating effectively 3) Output voltage, output current can be adjusted, limited voltage, limited current can be adjusted, can promote customers' using agility 4) Complete protection function, with over-current, over-voltage, over-heat protection Index parameter: 1) Range of input voltage (three phase): AC 380V±50V 2) Output current stability: ≤2% 3) Output voltage stability: ≤1% 4) The whole machine efficiency: ≥88% 5) Power factor: ≥0.9 6) Start-up postponing time: ≤10 seconds 7) Inverting frequency: 18kHz±2kHz 8) Current limited value: Io + 10A - 50A (Io is the rated current) 9) Voltage limited value: 1.01 - 1.03Vo (Vo is the rated voltage) 10) Cooling mode: air cooling Use: suitable for o acid copper, alkaline copper, nickel, foamed nickel plating, nickel iron alloy processes and electrolysis degreasing
