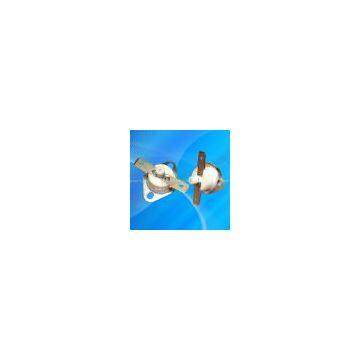

Ksd 301 Toasters Thermostat

Technical parameters:
1.Electrical parameters: 1)CQC,VDE,UL,CUL AC250V 50~60Hz 5A/10A/15A (Resistance load)
                       2)UL AC125V 50Hz 15A (Resistance load)

2. Action temperature range: -10~260°C   temperature accuracy: ±2 ±3 ±5 ±10°C
3.Recovery and action temperature difference: 8~100°C (Optional)
4.Connection method: Insert the terminal 250# (bending angle: 0~90° optional); Insert the terminal 187# (bending angle: 0~90° optional; thickness: 0.5, 0.8mm optional)
5.Lifespan: ≥ 150,000 times
6.Electrical strength: No spark or breakdown for 1min at AC 50Hz 1800V
7.Contact resistance: ≤50mΩ
8.Insulation resistance: ≤100MΩ
9.Junction method: Constant-closed: the contact point disconnects when temperature rises; and contact            point connects when temperature falls;
  Constant-opened: the contact point connects when temperature rises; and contact point disconnects when temperature falls.
10.Casing protective class: IP00
   Installation method: installed for KI031 series: general moving ring, mini round moving ring, flat moving ring general aluminum cover with mounting hole, extra length aluminum cover with mounting hole.



Advantages of KSD301 Thermostat

1. Stable performance
2. High accuracy
3. Mini-size, light
4. High reliability and long lifespan
5. Little radio interference
6.Less flashover

Special features of KSD301 Thermostat

Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button. And then the contact points recover , reaching a purpose of connecting or disconnecting the circuit and restarting the circuit by manual reset. (Kindly reminder: 1.This type of manual reset thermostat can reset when the temperature declines 20 °C after snap action by pressing the reset button. And 4~6 N will be advisable, please don’t use too much strength. 2. To ensure the normal function, the distance between the reset button and the close cover should not be less than 20.4mm. )
