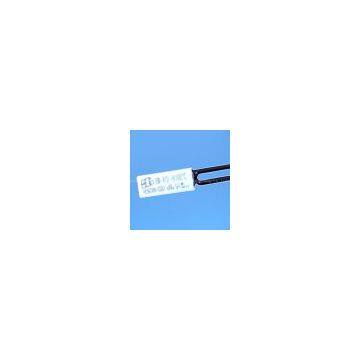

BW-A1D Transformer Thermal Protector

BW-A1D serial universal and enhanced protectors with large plastic casing are widely used in motor of industry, electrical household appliance, and electric equipment including humidifier, electrical dryer and ballast to avoid abnormal operation caused by overcurrent and overtemperature. The products provide effective, reliable and safe protection. The enhanced casing is suitable for internal installation of plastic hermetic motor, which can bear the plastic molding pressure at 3.5Mpa. The performance of the products satisfies the standards including IEC34-11, GB13232, GB/T13002, etc.

Structure and protection principle

BW-A1D serial universal and enhanced protectors with large plastic casing are composed of the thermal conductive plastic casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. When current passes through the bimetallic parts with resistance and in case of abnormal operation, along with the increase of current or the environment temperature rises to the set value, the bimetallic parts perform quick action, opens the contact point, and disconnects the circuit. When the device is cooled to the temperature for safe operation, the contact point will automatically closes and recover normal operation.

BW A1D Instruction:

BW-A1D serial universal and enhanced protectors with mini metal casing are widely used in motor of industry, electrical household appliance and electric equipment to avoid abnormal operation caused by overcurrent and overtemperature. The products provide effective, reliable and safe protection. The enhanced casing is suitable for internal installation of plastic hermetic motor, which can bear the plastic molding pressure at 3.5Mpa. The performance of the products satisfies the standards including IEC34-11, GB13232, GB/T13002, etc.

Structure and protection principle:

BW-A serial universal and enhanced protectors with large metal casing are composed of the thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. In case of abnormal operation, along with the increase of the environment temperature to the set value, the bimetallic parts perform quick action, open the contact point, and disconnect the circuit. When the device is cooled to the temperature for safe operation, the contact point will automatically closes and recover normal operation.
