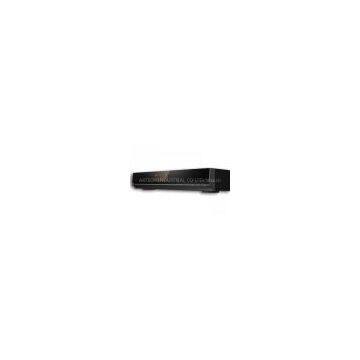

MPEG4 DVB-T HD Receiver Set Top Box with PVR and HDMI Output

MPEG4 DVB-T HD Receiver Set Top Box with PVR and HDMI Output

I, Function:

? 1, Supports USB2.0 PVR;

??? Supports USB2.0 hard disk include NTFS, FAT32 and FAT16 format (Note: some of HDD need external power supply);

??? Supports USB2.0 flash disk;

??2, Can play photo, movie and music files on USB device;

? 3, Supports EPG;

? 4, Supports LCN

5, Supports OSD Subtitle

6, Preset turn off time

7, Supports multi country OSD language

8, Supports N/P switch

9, Supports 1920x1080i, 1280x720p, 720x576p, 720x576i switching

10, Output: HDMI, SCART, YPbPr, CVBS

11, Antenna power

12, Loop

13, Variable aspect ratio (4:3, 16:9)

II, Decode

1, Video decode: H.264 MP and HP;VC-1 SP, MP, and AP; DivX

3.11/4/5/6;RMVB 8/9/10; MPEG-2 MP@ML and MP@HL;MPEG-4 P2

ASP;H.263 P3;Sorenson Spark; AVS Jizhun; Motion JPEG baseline

2, Audio decode: MPEG-1 layer 1/2/3;MPEG-2 layer 1/2;MPEG-4 HE-AAC

v1/2;Dolby Digital (AC3); Dolby Digital Plus (E-AC3);E-AC3 to AC3

conversion; HE-AAC to AC3 conversion;WMA-9

3, Supports video format: MPEG1, MPEG2, MPEG4, H264, Motion JPEG (.avi, .mpg, .dat, .vob, .div, .mov, .mkv, .mjpeg, .ts, .trp)

4, Supports audio format: WMA, MP3, AAC (.wma, .mp3, m4a)

5, Supports picture format: JPEG, BMP, PNG

III, Interface:

1, Coaxial output

2, HDMI output, can support HDCP

3, USB 2.0 output

4, RF IN and RF OUT

?5, CVBS

6, YPbPr

IV, System characteristic:

?1, Antenna input:

Input Frequency: 174~860MHZ UHF @ VHF

Bandwidth: 7/8M

Wave form: OFDM.

Input resistance: 75 ohms

Constellations:QPSK/16QAM/64QAM

Transmission mode: 2K, 8K, 16K

Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

Input sensitivity: -82db (64QAM, 7/8, 1/32)

2, Power input: AC: 100~240V, 50/60 HZ

3, Power Consumption: Working:? < 10W; Standby: < 1W
