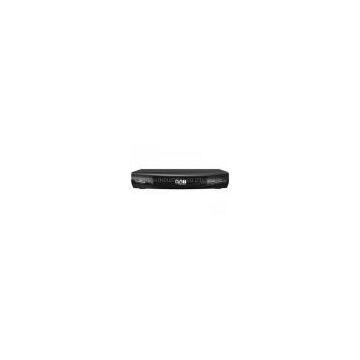

Cheapest HD DVB-S2 Receiver with LED Display

Cheapest HD DVB-S2 Receiver with LED Display

Features:

Fully DVB-S/DVB-S2/MPEG - 2 / MPEG - 4 / H.264compliant

Support High Definition MPEG-2, MPEG-4 AVC/H.264 decoding

High Definition and Standard Definition video decoding 576i, 720p, 1080i, 1080p@30fps

PAL-NTSC auto-conversion system

Multi-language OSD

Multi-language audio and subtitle

Teletext (VBI&OSD output)

Subtitle (OSD output)

Electronic program guide

Max 4000 channels program

LNB Switching by 13/18V, 0/22KHz

Diseqc1.01.2 and USALS

Support standby function

Parent lock

USB2.0 for USB PVR and time shift

LED display

Specification:

Video Decoder:

Standard:MPEG-1, MPEG-2 MP@HL, MPEG-4 P2 ASP, Divx(3.x~6.x)HD, H.264 MP and HP

Aspect ratio: 4:3 LB, 4:3 PS, 16:9, Auto

Video resolution:max. 1920x1080

Audio Decoder:

Standard:MPEG-1, MPEG-2(layer I/II), MP3, AAC, HE-AAC level 2&4, AC-3

Audio channel:Mono, Dual-channel, Stereo

Tuner:

Input frequency range: 950MHz~2150MHz

Bandwidth: up to 36MHz

Input signal level: -85~-25dBm

LNBPower&Polarisation:Vertical:+13V, Horisontal:+18V

Max current:500mA with overload protection

22KHz tone Frequency:224KHz, Amplitude:0.60.2V

RF input connector: IEC169-24 type(female)

RF output connector: IEC169-24 type(male)

Input impedance: 75Ω

MODULATION: QPSK / 8PSK / 16APSK

Connectors:

Antenna in

Antenna out

L/R audio output

CVBS video output

YPbPr output

Coaxial output

HDMI output

SCART output (Optional)

USB2.0

Power Supply:

InputVoltage Range: 110~240 V AC 50/60 Hz

Power consumption: :< 8W (Except antenna)

Standby Consumption: :< 1 W

If no operation from user for 3 hours, the box automatically enters into standby mode.

Accessories:

Remote control, AV cable, User manual, Battery

Packing:

Body size: W220 x D140 xH38 mm

Packing size: W250x D190x H55 mm

Net Weight: 0.9 kg

QTY/CT: 10pcs

Loading QTY: 20’’/40’’/40’’HQ: 5000/10000/12000pcs
