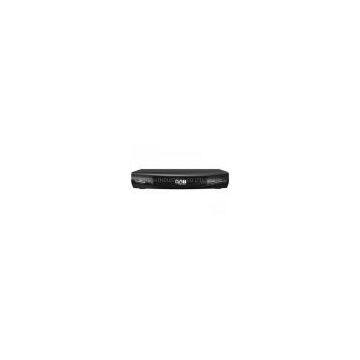

1080p, MPEG-2, HD MPEG-4 H.264 DVB-T HD Receiver Set Top Box with Twin Tuner, USB PVR

Supports simultaneous decoding of two channels

Supports MPEG-2, HD MPEG-4 H.264 and fully DVB-T compliant

Full high definition up to 1080p

USB PVR function( USB stickers or mobile HDD)supported

Time shift supported

Media playback via the USB port in USB sticker/external HDD, supporting below formats:

MOVIE:MPEG-2/MJPEG/AVI/MKV/DIVX(No 3.xx)/XVID/MPEG-4

AUDIO:MP3/WMA/WAV/AAC

PICTURE: JPEG/BMP/PNG/GIF/TIF

Fast channel filtering by first letter of channel name

Digital sound through coaxial output (S/PDIF)

Power indicator lamp(red in Standby mode, green in Active mode)

Max. 1, 000 channels memory capacity

8 Favourite lists for TV-and Radio programme?

Quick and easy installation & user-friendly menu

Parental lock function for menu and selectable per channel

Teletext via OSD & VBI

Electronic Programme Guide (EPG) for present/following event information and up to 7 days for on screen programme information

Full multi-lingual DVB subtitling and audio track support

Multi-lingual support on screen menu (OSD)

Edit functions for TV or Radio programme name

Signal strength bar for digital transponders

Automatic and manual channel scan options

Power on with last viewed channel

8 Timers for recording and/ or sleep-timer with 3 modes (daily, weekly, once)

User-friendly remote control with coloured function buttons

Low power consumption (EuP compliant)

Connections:Antenna IN, Loop OUT, two Scart (TV and VCR), HDMI, S/PDIF(Coaxial), USB2.0.

Demodulator

Modulation: COFDM

Constellation: QPSK, 16QAM, 64QAM

Transmission mode: 2K, 8K

Guard Interva: 1/4, 1/8, 1/16, 1/32

Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8

Input Symbol Rate: 2~45 Ms/s

Video Decoder

Transport Stream:? ISO/IEC 13818-1 MPEG-2, H.264/AVC Transport stream Specification

Profile Level:? MPEG-2 MP@ML, MP@HL, MPEG-4 H.264/AVC

Aspect Ratio:? 4:3, 16:9

Video Resolution:? 576i, 576p, 720p, 1080i, 1080p

Audio Decoder:

Audio?decoding?MPEG-1?and?2, ?Layer?I?&?II

MPEG-4?HE-AAC?V1L1, ?L2, ?V2?L2/L4

Dolby?Digital(AC-3), Dolby?Digital?Plus(DD+)

Dual Tuner

Input Frequency Range: 174MHz - 230MHz, 474MHz - 862MHz(VHF~UHF)

Connectors:

Antenna In

Antenna Out(Loop Through)

HDMI: HD Video/Audio Output

TV Scart : Video CVBS/RGB, Audio L/R output

VCR Scart

S/PDIF(Coaxial)

USB: USB2.0 Host, firmware upgrading, media play back, PVR function supported(recording into USB flash sticker and mobile HDD).

Power Supply:

InputVoltage Range: 110~240 V AC? 50/60 Hz?

Power consumption: :<8W WITHOUT PVR

Standby Consumption: :<1?W

If no operation from user for 3 hours, the box automatially entre into standby mode.

Remote control, AV cable, User manual, Battery

Body size: W220 x D135 xH38 mm

Packing size: W250 x D160 x H55 mm

Net Weight:?? kg

QTY/CT: 10pcs

Loading QTY:20’’/40’’/40’’HQ: 6000/12000/13000pcs
