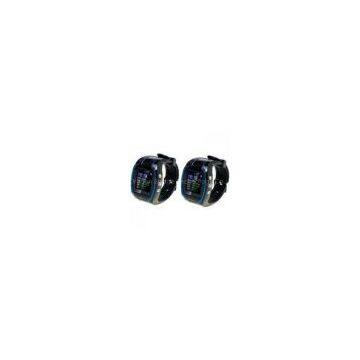

163dBm 850MHz /900MHz Personal Sports Wrist Watch GPS Tracker GSM Positioning Device

Brand Name	Dragon		Place of Origin	China
Model Number	TK210

Delivery Time:5 working days
Certification:CE, FCC, IP65
163dBm 850MHz /900MHz Personal Sports Wrist Watch GPS Tracker GSM Positioning Device ? Chapter I Preface I. General

DB-6P210 represents the perfect combination of GSM and GPS technologies. This model, with its precise dimensions and compact appearance, expresses the advanced workmanship in the GSM and GPS field. It is a typical design combing communication products and GPS services.

As a professional security and positioning company, we will provide you with more and better products and services. Before using the watch, please spend several minutes reading this user’s manual in order to get to know about operation details and obtain better services.

II. Notices

1.?????? Please read this user’s manual carefully and always use correct operation methods to prevent any possible errors.

2.?????? This user’s manual is for reference only. If some contents and operation steps are inconsistent with those for the actual product, the latter will prevail.

3.?????? The defaulted password of this product is 0000.

Chapter II about the Device

DB-6P210, as a personal remote positioning device made up of GPS module and GSM/GPRS module, is compact in dimensions with high accuracy. On the basis of GPS satellites and under dynamic conditions, it can provide you with accurate and correct location information. With such features, it can be used to protect and look for our old people and children. It can also be used for safety purpose and other purposes, such as remote positioning to protect property safety.

1 Appearance 2 Product Features

●????? Inbuilt GPS Module

●????? Internet positioning service center, used to receive and send positioning information

●????? GSM /GPRS modem supports Quad frequency bands, i.e. 850/900/1800/1900 MHz

●????? High-sensitivity, new workmanship and the most advanced GPS chip

●????? Can work effectively in limited space such as urban canyon

●????? Low energy consumption

●????? Fast signal acquisition

●????? Supports single positioning and continuous tracking;

●????? Supports alarming and remote monitoring

●????? Supports fast dial button

●????? Supports the location information inquiry by SMS and Internet

●????? May monitor without disturbing the tracked person and realizes real-time tracking;

●????? Can position the holder by call or SMS

●????? In emergency, press the SOS button to have an accurate positioning

3 Product Specifications

(1). Technical Specifications

GSM module	GSM 850/900/1800/1900 MHz Quad frequency
GPS sensitivity	-163dBm
GPS center frequency	L1, 1575.42MHz
GPS positioning accuracy	5-25m
GSM positioning accuracy	100-500m
Speed accuracy	0.1 m/s
Time accuracy	Synchronous with GPS
GPS Datum	WGS-84
Hot start	< 1s
Warm start	< 38s
Max. altitude	18000m
Max. speed	515m/s
Gravitational acceleration	﹤4g

(2). Others

Operating temperature	-20---65℃
Humidity	5%---95%
Dimensions	64.5mm×45.5mm×17.5 mm (main unit)
Voltage	Rechargeable 450mAh battery
Power supply	DC5V
Standby time	>48h
Buttons
