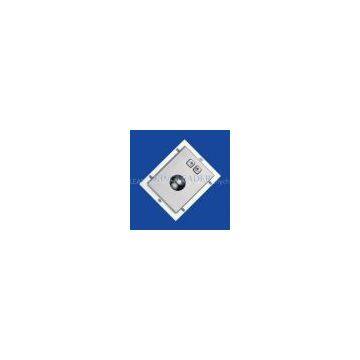

38mm Panel-mount Optical Metal Trackball Industrial Pointing Device MTB-38

38mm Panel-mount Optical Metal Trackball Industrial Pointing Device? MTB-38

Key Features

● Optical trackball(dia:38mm)

● Made of abrasion-resistant stainless steel

● Dust-proof and liquid-proof, IP65 compliance(Static)

● Vandal-proof

● Specially designed to operate in harsh environments, making it ideal for kiosk or other demanding applications in industrial environment

● Compatible with WINDOWS98/ME/2000/XP/Mac

● PS/2 or USB interface

● Panel mounting

Technical Specifications

Material

? Front Panel: 304 stainless steel

? Key: 304 stainless steel

? Trackball: 304 stainless steel

? Back Panel: aluminum alloy

Electrical Data

? Voltage: 5.0VDC ±5%

? Electric current: 10mA

? EMC compliant

? Optical Trackball resolution: 1000dpi

Environmental Characteristics

? Operating temperature: -20°C to + 60°C

? Storage temperature: - 40°C to + 80°C

? Saline mist: 96 hours, IEC 60512-6

? Damp heat test at + 40°C: 21 days, IEC 60512-6

? Dry heat test at + 85°C: 10 days, IEC 60512-6

Mechanical Data

? Lifecycle: >5 million times per key

? Key Travel: 2mm

? Actuation Force for Keys: 80g nominal

? Lettering: raised graphics with permanent printing ink

? Trackball diameter: 38 mm

Operation system

? PS2: Win NT4, 98SE, 98ME, 2000, XP

? USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Reliability

? MTBF >20000h

? MTTR <30min

Dimension

? Face plate:110 x 83 mm(LxW)
