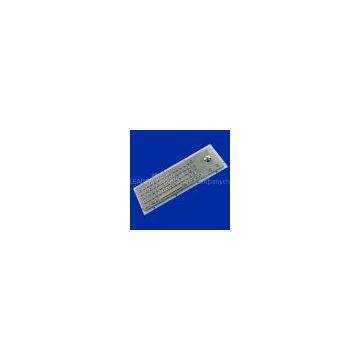

meet IP65 panel mount metal keyboard with trackball PS/2 or USB MKB-64A-TB

Rugged stainless steel, water-proof, vandal-proof, panel mount keyboard with 64 customizable, full-travel keys and integrated OPTICAL trackball

Key Features

1) 64 keys, with integrated OPTICAL trackball

2) Panel mounted (mounted from the back side)

3) Full travel(2.0mm)keys, excellent tactile feedback

4) Etched graphics with permanent ink
5) Specially designed to operate in harsh environments, making it ideal for kiosk and other applications in harsh environment.
6) Built from stainless steel, high vandal-proof.
7) Dust-proof and liquid-proof, meet IP65 requirement
8) PS/2 or USB interface for option
9) Customizable layout/characters

Technical Specifications

Material

- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Trackball: Stainless steel trackball (Dia: 38mm)

Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
? Emission: EN 50081-1
? Immunity: EN 50082-1
- FCC: Part 15, class B
- Certification:CE, FCC

Environmental Characteristics

- Operating temperature: -20o C to + 60o C
- Storage temperature: - 40o C to + 80o C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40o C: 21 days, IEC 60512-6
- Dry heat test at + 85o C: 10 days, IEC 60512-6

Mechanical Data

- Actuation force for key:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s2 - 11 ms, IEC 60512-4

Operation system

- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Weight and dimension

-Weight: 1.80kg
- Dimension:
? Front panel: 392.00 x 110.00 mm
? Back panel: 416.00 x 134.00 mm

? Thickness: 32.20mm
