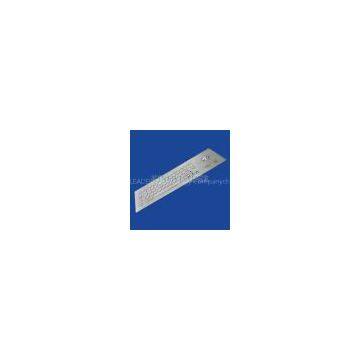

Waterproof panel mount industrial metal keyboard with optical trackball

Rugged stainless steel, water-proof, vandal-proof, panel mount keyboard with 64 customizable, full travel keys and integrated OPTICAL trackball, mounting brackets included.

Key Features:

1) 64 stainless steel keys

2), Integrated optical trackball delivers excellent pointing performance that conventional mechanical trackball cannot have

3) Protrudent full travel keys with etched graphics, excellent tactile feedback
4) Panel mount(mounting bracket/kit comes with this keyboard)
5) Designed to operate in harsh environments, making it ideal for demanding applications in public space or industrial environments
6) Built from stainless steel, high resistance against vandalism
7) Dust-proof and liquid-proof, meet IP65 requirement
8) PS/2 or USB interface

9) Customizable layout
?

Specifications:

Material

- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Trackball: Stainless steel(Dia: 38mm)

Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
? Emission: EN 50081-1
? Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliance

Environmental Characteristics

- Operating temperature: -20o C to + 60o C
- Storage temperature: - 40o C to + 80o C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40o C: 21 days, IEC 60512-6
- Dry heat test at + 85: o C 10 days, IEC 60512-6

Mechanical Data

- Actuation force for keys:120±15g

- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s2 - 11 ms, IEC 60512-4

Compatible Operation System

- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Weight and Dimension

- Weight: 1.80kg ; Dimension: 400.00 x 124.00 x 32.20mm
