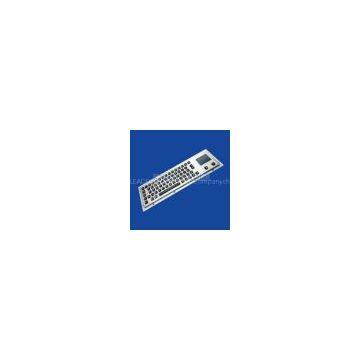

Illuminated Brushed metal pc keyboard integrated touchpad with 65 full travel backlit keys

Illuminated Brushed metal pc keyboard integrated touchpad with 65 full travel backlit keys?

?Key Features:

1) 65 LED individually-lit keys

2) with integrated touchpad;
3) Panel mount, installing from the rear side
4) Protruding full travel(2.0mm)keys with laser-etched legend, excellent tactile feedback
5) Specially designed to operate in harsh and low-lit environments

6) Robust construction, high resistance against vandalism
7) Dust-proof and liquid-proof, meet IP65 requirement after properly mounted
8) PS/2 or USB interface for option

9) Customizable layout upon customer’s request

Specifications:

Material

- Front panel: Brushed stainless steel

- Keys:High temperature-resistant polycarbonate
- Back panel: Aluminum alloy

Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
? Emission: EN 50081-1
? Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant

Environmental Characteristics

- Operating temperature: -20o C to + 60o C
- Storage temperature: - 40o C to + 80o C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40o C: 21 days, IEC 60512-6
- Dry heat test at + 85o C: 10 days, IEC 60512-6

Mechanical Data

- Actuation force for key:120±15g

- Key travel: 2.0mm

- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s2 - 11 ms, IEC 60512-4

Touchpad

- Power supply voltage: 5 VDC ± 10%
- Current rating (active mode): 17 mA
- Interface: PS2 or USB
- X/Y position sensing resolution: 40 counts/mm
- X/Y position reporting: Relative
- Tracking speed: Maximum 1, 016 m/sec

Compatible Operation system

- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

?Color

Keycap:black, grey or silver

Backlight:blue, green or red

?Weight and dimension

- Weight: 1.8 kg
- Dimension: Front panel: 400.0x124.0x22.2mm
