Product Details

Brand Name	Vcomsky		Place of Origin	China
Model Number	VC-MDR7045

Product Description

Delivery Time:300 sets will be delivered in 3 days
Certification:QC,CE

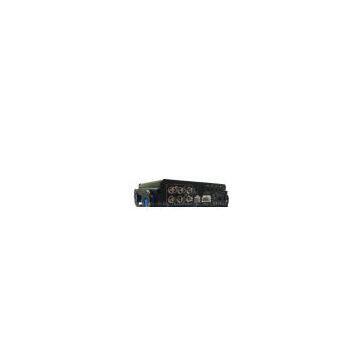

D1 704x576 Resolution 3G Mobile DVR Security Systems with H.264 High Profile

Descriptions

This Mobile DVR is mounted on a small, rugged, vibration and shock resistant bracket, allows recorded video to be quickly exported through it’s an extra USB2.0 HDD Reader.

This Mobile DVR supports ?1 or 4 channels of video, 1 channels of audio and gives users the option of selecting recording resolutions from CIF(352x288) to D1 (704x576). The removable hard drive stores recorded video and can be removed and connected to a standard PC to view recorded video. It supports 3G and GPS function . This mobile solution comes complete with everything required for simple installation.

This mobile solutions are currently being used in the following applications:

Law Enforcement - Patrol Cars Military - Tanks Emergency – Ambulances, Fire Trucks Public – Buses, Trains, Railways, Subways Commercial – Boats, Heavy Equipment, Limousines, Taxis, Vans Transportation - Freight Liners Aviation – Helicopters, Commercial and Private Aircraft

Specifications

Item	Parameter	Description
System	Language	Chinse Simplified/Chinese Traditional/English/other language order
	Interface	Graphical User Interface
	Security	Administor and user password protected
Video	Video Input	4 channel video input, 1.0V, p-p, 75Ω
	Video Output	1 channel vidoe output, 1.0V, p-p, 75Ω
	Display	1/4 channel display
	Video Standard	PAL (25fps) NTSC (30fps)
Audio	Audio Input	1 channel audio input, 20KΩ
	Audio Output	1 channel audio output, 500Ω
	Output level	1V ~2V, p-p
	Recording mode	Audio and video simultaneously recording
	Compression	AAC
Storage	Video Compression	H.264 High Profile
	Video bitrate	D1: 200Kbps ~ 2Mbps, 3 selectable quality
	Audio bitrate	8KB/s(Compressed)
	Storage	2.5 inch hard disk
Alarm	Alarms	1-4 CH
Communication	COM	one RS232 connector for optional
GPS	Support external GPS module, geographic coordinates, speed can be written in code stream
G-SENSOR	Support
3G	Support EVDO/WCDMA/CDMA2000 for optional
Firmware update	Via USB disk
Power	Power input
