OEM H.264 ASIC 3G SD Mobile DVR Car Black Box Camera with Linux (2.6) System

FOB Price

Negotiable / Kilogram

1 Kilogram(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Vcomsky		Place of Origin	China
Model Number	VC-MDR3004GD

Product Description

Delivery Time:300 sets will be delivered in 3 days
Certification:QC,CE

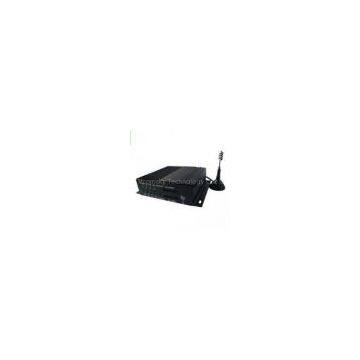

OEM H.264 ASIC 3G SD Mobile DVR Car Black Box Camera with Linux (2.6) System

Descriptions

VC-MDR700X Mobile DVR adopt highly integrated H.264 ASIC, its image quality is excellent, in addition to using the hard disk as a video storage medium or it can use SD card as an auxiliary video storage medium to improve the stability of record data. Through the built-in USB port the video data can be backed up quickly.

VC-MDR700X In addition to integrated vehicle status monitor, it can support built-in GPS, 2G/3G modules.

The playback software of MDR700X can not only achieve the synchronous and asynchronous multi-channel playback, the video and GPS also enables synchronization of data such as playback, convenient video analysis.

VC-MDR700X can be widely used in buses, taxis, police cars, law enforcement vehicles, and other various types of vehicles.

This mobile solutions are currently being used in the following applications:

Law Enforcement - Patrol Cars Military - Tanks Emergency – Ambulances, Fire Trucks Public – Buses, Trains, Railways, Subways Commercial – Boats, Heavy Equipment, Limousines, Taxis, Vans Transportation - Freight Liners Aviation – Helicopters, Commercial and Private Aircraft

Key Features

H.264 Compression, Record Resolution Up to D1 Dual Stream for Recording and Network transmit Support Hard disk and SD card recording, USB and Network Backup Pluggable hard disk 2.5 " HDD tray, with mature vibration reduction technology Independent 6 Vehicle status monitor interface, of which one can speed 8-32V power input Vent-free enclosure design

Specifications:

Item		Description
Operating System		Linux (2.6)
Video Compression		H.264
OSD		Overlays letters and logo… like some date&time info and vehicle ID into video streming.
GUI	Graphical User Interface	Setup system parameters through the remote control.
Video and Recording System	Video input	1-4 channels input, 4 CVBS, 1.0Vp-p, 75Ω
	Video output	1CH output, CVBS, 1.0Vp-p, 75Ω, single or quad monitor
	Preview	Support 1 channel and 4 channels preview. Also can preview through PC, with PC Viewer software.
	Recording Resolution	Support CIF, HD1, D1 resolution optional, maximum 2CH of D1 & 2CH of CIF.
	Video Quality	1-4 levels, 1 is the highest level , 4 is the lowest level.
	Recording Speed	PAL: 100Frame/s , CCIR625 line, 50 field NTSC: 120Frame/s, CCIR525 line, 60 field CIF: 256Kbps ~ 1.5Mbps, 4 quality level support, HD1: 600Kbps ~ 2.5Mbps, 4 quality level support D1:? 800Kbps ~ 3Mbps, 4 quality level support
	Video stream	ISO14496-10 standard
	Recording Mode	Default auto recording after power on, support timed recording, alarm? recording
Audio	Audio Input	Mic or line in, 1 channel
	Audio Output	1 channel output, output voltage: 1V ~2V
	Compression	G.726, ? 5KB/s
Playback System	Video Search	Search video via time, type(normal or a
