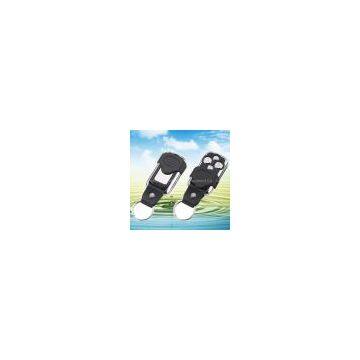

Wirless remote control for garage door opener

Characteristics:

1.   Various cases and design for your choice

2.   Metterial: Metal and PVC

3.   Encoding type:learning code/ fixed code/hopping code/copy cpde (optional)

4.   Frenquency: 315MHz/433MHz/868 MHz and other for your requirments

Technical Prameters:

1.   Working voltage:DC12V

2.   Working current:<=12mA

3.   working frenquency:315MHz/433MHz/868MHz and other for optional

4.   Transmit power: >=10mW

5.   Transmission Speed:50-60KHZ

6.   Frenquency Windage:±0.2MHz

7.   Transmission distance:100 meters(Open space)

8.   Oscillation resistance:As customer’s request

9.   Chip and Operating mode:

                         Larning code(1527,2240,HT6P20B,HT6P20D etc,)

                         Fixed code (2260,2262 etc)

                         Hopping code(HCS301,300,200 etc.)

                         Copy code

Methods of operation:

1, Clear out code:

To Clear up test stored rf signal memory from factory by pressing the locking key and unlock the key at the same time, two seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. Indicates that the remote control codes stored has been cleared out.

2, Duplicating (learning)

 Hands are holding remote control , and the other are holding the duplicating remote control, 2 remote controls put together as close as possible, while pressing the remote controls two match button,(eg: A-A’,B-B’) three seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that this copy of the remote control buttons are same as copied on the remote control button codes . Several other keys are also according to the above approach to learning.

3, Recovery code

 If the code copied have been mistakenly removed the remote control, you do not worry, the remote control can restore yourself. Method is pressing (up-down eg: locking key and bell key) two buttons (metal shell remote control on the left, the plastic shell remote control on the right) at the same time ,3 seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that the original remote control codes have been restored.

4.The other way, you can delete all and relearn them again.

User range:

It is very easy and convenience to be used for home/ store anti-theft alarm, electric cars, electric door, motorcycles, car alarms, all kinds of doors/windows controllers and other industrial control.

For Order:

1.   Accept OEM.

2.   Can print logo on the case and package.

3.   Terms of payment:TT/Western Union optional

4.   MOQ:100 pcs

5.   Delivery time:5-7 working days after received the payment.

For Service

1.   Your inquiry can be resposed in 12 hours.

2.   All your question can be answered by our well-trained and experienced staff in English

3.   All your customised products which we can help you to design and put into production

4.   All your private information such as the sales area, ideas, design etc. can be protected.

5.   Delivery by DHL,UPS,EMS or by sea as your requirments.
