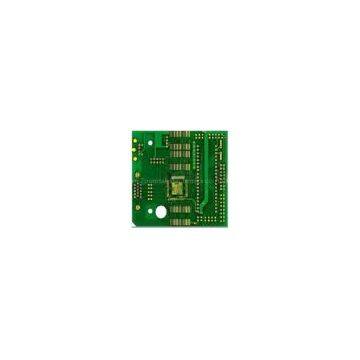

CEM-1 PCB Board Assembly Manufacturing with 16 Layers

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Zoomtak		Place of Origin	China
Model Number	Zoomtak-PCB-005

Product Description

Delivery Time:7-10days

CEM-1 PCB Board Assembly Manufacturing with 16 Layers

Description

1.?Single-sided, ?double?side?&?multi-layer?PCB?with?competitive?price, ?good?quality?and?excellent?service.?
2.?FR-1, CEM-1, ?CEM-3, FR-4, ?FR-4?High?TG, ?Aluminum?base?material.?
3.?HAL, ?HAL?lead?free, ?Immersion?Gold/?Silver/Tin, ?OSP?surface?treatment.?
4.?Printed?Circuit?Boards?are?94V0?compliant, ?and?adhere?to?IPC610?Class?2?international?PCB?standard.?
5.?Quantities?range?from?prototype?to?medium?batch?production.?
6.100%?E-Test

Application

Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries

Advantage

1.PCB?factory?directly?
2.PCB?high?quality?
3.PCB?good?price?
4.PCB?quick?time?
5.PCB?certification(ISO/UL/RoHS)...

Specification

SERIAL?	ITEM	TECHNICAL?DATA?
1	Layers	2－16(layers)
2	Max?Board?Size	18"?x?24"
3	Max?Board?Thickness	6mm?
4	Min?Line?Width	4mil
5	Min?Line?Space	4mil
6	??Min?Hole?Size	12mil
7	??PTH?Wall?Thickness	1mil
8	??PTH?dia?tolerance	±3mil
9	?NPTH?hole?dia?tolerance	±2mil
10	??Hole?Position?Deviation	±2mil
11	??Outline?Tolerance?	±6mil
12	S/M?Pitch	3mil
13	??Insulation?Resistance	1E+12Ω(Normal)
14	?Thermal?Shock?	??288?℃(3x10Sec)?
15	Warp?and?Twist	≤0.7%
16	Electric?Strength	＞1.3KV/mm
17	Peel?Strength	1.4N/mm
18	Solder?Mask?Abrasion	≥6H?
19	Flammability	94V-0
20	Electrical?test	10V?-250V

Material?	Surface?Finish?
CEM-1?	OSP?
FR-4?	HASL?
FR-4?High?TG?	HASL?lead?free?
Aluminum?PCB	Immersion/Chemical?Gold?
FR406?
