Home > Products > High Frequency Online UPS > LED High Frequency Online UPS HP9110E 6 - 10KVA (1Ph In/1Ph Out)

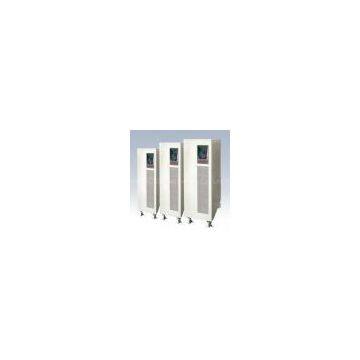

LED High Frequency Online UPS HP9110E 6 - 10KVA (1Ph In/1Ph Out)
- T/T L/C D/P D/A
- 7 days
You May Like
-
LED High Frequency Online UPS HP9310E 10 - 20KVA (3Ph In/1Ph Out)
-
High Frequency Online UPS HP9117C Series 0.7 - 3KVA
-
High Frequency Online UPS 1 - 10KVA
-
Outdoor UPS 1-10KVA
-
High-performance Integrated Outdoor Online UPS HW9110E Series 1 Kva , 2 kv ,4 kv , 5 kv , 10 kv
-
Low Frequency UPS GP9335C Series 120 - 800KVA (3Ph In/3Ph Out)
Product Details
| Brand Name | SOROTEC | Place of Origin | China | |
Product Description
Certification:CE,ROHS,ISO9000
Key Features
● True online double conversion technology
● Wide input voltage range
● Zero transfer time
● Protection against all types of power problems
● No add-on CNTL unit required for parallel connection
● Low initial investment and flexible for future expansion
● Highest reliability and maximum performance for power sharing and redundancy
● Equipped with Maintenance Bypass Switch
● Smart RS232 and Intelligent Slot Interface
● Sealed lead-acid, maintenance free battery
● N+X Parallel Redundancy and Capacity Expansion
Applications
Servers, Data-center, Critical network devices, Sensitive electronic equipment, Telecom, Computer field, bank system, communications, postal service, power industry, medical treatment field, national defense field, chemical industry, and many other fields. It’s capable in offering solution for various utility power problems…
Technical Specifications of Online UPS HP9110E HP9310E 6-20KVA
|
Model |
HP9110E? |
HP9110E? |
HP9110E |
HP9110E |
HP9310E |
HP9310E? |
HP9310E |
|
|
Capacity |
VA/W |
6KVA /4.2KW |
10KVA /7KW |
6KVA /4.2KW |
10KVA /7KW |
10KVA /7KW |
15KVA /10.5KW |
20KVA /14KW |
|
Input |
Rated Voltage |
220/230/240VAC |
||||||
|
Voltage Range |
176-276VAC |
304-478VAC |
||||||
|
Frequency |
50Hz:46-54Hz:;60Hz::56-64Hz |
|||||||
|
Power Factory |
0.98 |
0.95 |
||||||
|
Wire Connection |
Wire connecting terminal |
|||||||
|
Output |
Voltage |
220/230/240×(1±2%)VAC |
||||||
|
Phase |
Single Phase |
3 Phase |
||||||
|
Waveform |
Pure sine wave |
|||||||
|
Voltage Distortion |
2% THD(linear load); 6% THD(non-linear load) |
|||||||
|
Overload Capacity |
105%-130% can last for 10 minutes; ≥130 can last for 1s |
|||||||
|
Current Crest Ratio |
3:1 |
|||||||
|
Connections |
Wire connecting terminal |
|||||||
|
Transfer Time |
Zero transfer time |
|||||||
|
Maintenance Bypass Switch |
With maintenance bypass switch |
|||||||
|
Indicators |
LED Display |
Load condition, battery state, battery, available power, inverter, bypass, overload, fault. |
||||||
|
Bypass |
Alarm once per 2s |
|||||||
|
Battery Discharge |
Alarm once per 4s; in the case of low battery, it will alarm once | |||||||
