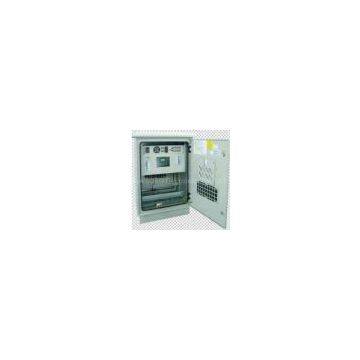

Double-conversion Outdoor UPS

HW9110E? 1-10KVA

1KVA

2KVA

3KVA

6KVA

10KVA

Capacity

1KVA/800W

2KVA/1600W

3KVA/2400W

6KVA/4800W

1000KVA/8000W

Nominal voltage

220/230/240VAC

Nominal frequency

50/60HZ

Input

Voltage Range

115～295VAC（±3VAC）

176～297VAC（±3VAC）

Frequency Range

50HZ：（46～54HZ）；60HZ：（56HZ～64HZ）

Power Factor

0.98

Output

Voltage Precision

220/230/240X (1±2%)VAC

Frequency Precision

50/60HZ±0.05Hz

Power Factor

0.7/0.8（optional）

Wave Distortion

Linear load ＜3%??????? Non-linear load ＜6%

Overload capability

Overload (110% ~ 150%) for 30 seconds, then automatically transfer to bypass. When load is normal, it can automatically transfer to normal mode.

Crest factor

3:1

Transfer Time

0ms（AC to DC ）

Battery

DC supply voltage

36VDC

96VDC

96VDC

240VDC

240VDC

Charge current

4A/8A（optional）

4A/8A（optional）

4A/8A（optional）

4.2A

4.2A

Internal battery capacity

（38/65/80/100AH）optional

Panel display

LCD

Display
