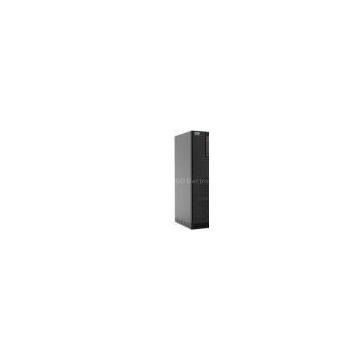

Low Frequency UPS GP9335C Series 120 - 800KVA (3Ph in/3Ph out)

Key Features

1. On-Line Dual Conversion, fully isolating the influences of power grid pollution and power failure from utility power supply and diesel generator to load
2. Rated at 0.9 output power factor, more applicable to server computer and network center that use PFC technology in a large scale, and deliver more Active power than conventional UPS
3. Use advanced 6th generation DSP and full digital control technologies to realize higher system stability
4. Multi input harmonic suppressing technology improves the utility rate of electric Power Output isolation transformer with zero phase shift reduces the influences of Neutral to Ground voltage and load harmonic current to inverter
5. Extra strong capability to withstand output overload and short circuit, ensuring the system stability and system safety under extreme conditions
6. Advanced distributed active parallel technology can realize parallel operation of six UPS units without the need of centralized bypass cabinet
7. Extra wide input voltage and frequency range make it adapt to severe power grid environment
8. Standard input/output filter improves the system EMC performance
9.Intelligent battery management maintains battery automatically to prolong the battery life
10. 6-inch extra large LCD that can display 12 language( Chinese .English.Russian.Spanish.French and so on
11. Layered independently-sealed ventilation channel and redundant fan, circuit boards with protective paints and a dust filter embedded make it highly efficient to dissipate heat and protect the product effectively under severe environment.
Applications
Mainly used in large IDC rooms, bank/securities settlement center, communication network management center, semiconductor product lines and large automation production and its control system. According to the special needs of users was improved, and used in large sports venues, conference room, theater and highway and railway tunnels metal halide lamp lighting system.
Low Frequency Online UPS GP9335C Series Construction

Technical Specifications of Online UPS GP9335C 120-800KVA
