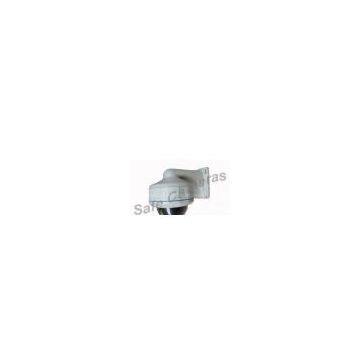

Sony Effio-E IR Dome Camera SC-6000LH

Model No.

SC-6000LH

SC-6000L

Camera Type

Color Vandal Proof IR Camera

Image Sensor

1/3 Inch SONY Effio-E Exview HAD CCD II

Effective Pixels

700TVL PAL:960(H) x582(V) ;NTSC:967(H)x494(V)

600TVL PAL:752(H)x582(V), NTSC:768(H) x494(V)?

Sensing Area

4.9mm x 3.7mm

Signal System

PAL /NTSC

Horizontal Resolution

700 TV Lines?ICX673AK/IC672AK?

650 TV Lines????????????? ICX639AK/IC638AK

Min. Illumination

Color(0.01Lux), ?B/W(0 Lux, IR On)???????? ?? ?

Color(0.01Lux), ?B/W(0 Lux, IR On)

Lens Mount

Varifocal 4-9MM IR Lens?(2.8-12mm Varifocal IR Lens Optional)

Angle of View

80(W)-34(T) Degree / 101.1 degree

Day/Night(Electronic)

Yes

Infrared

Yes

Scanning System

2:1 Interlaced

Synchronization Frequency

PAL:15.625KHz/ NTSC:15.734KHz

Clock Frequency

PAL:19.3125/NTSC:19.0699

Gamma Correction

0.45 approx

Backlinght Compensation

Auto

S/N Ratio

More Than 48dB (AGC Off)

Electronic Shutter

PAL=1/50 ~1/100, 000 sec, NTSC=1/60 ~1/100, 000 sec

White Balance

Auto

AGC

Auto

Infrared Luminary

30 pieces ф5 IR-LED

Infrared Wavelength

850 nm

IR Status

Light below 3Lux, CDS automatically turn on

Illuminate Distance

20-30M

Waterproof Criterion

IP65

Weatherproof

Yes

Vandalproof

Yes

I/O Connector

Power : DC Power Jack , Video Output : BNC

On-Screen Display

Yes

Video Output Level

1.0 Vp-p (75 Ohms, composite)

Singal Connector

BNC

Supplied Voltage
