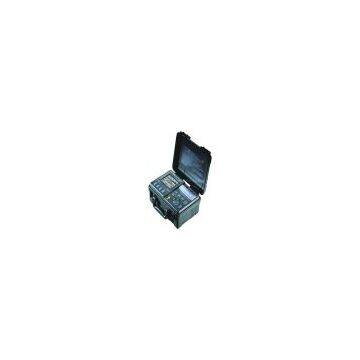

High Voltage Digital Insulation Tester

Brand Name	MASTECH		Place of Origin	China
Model Number	MS5215

Feature
♦Checking the insulation of high-voltage electrical equipment (electric motor, transformer, and cable, etc)
♦Test Voltage from 250V to 5000V.
♦Insulation resistance up to 5TΩ
♦Short Current up to 3mA.
♦Auto Calculate PI (Polarization Index) and DAR (Dielectric absorption ratio).
♦Step-Voltage Measurement
♦Temperature measurement
♦Temperature compensation for insulation Test
♦Leakage Current measurement.
♦Data Storage function and uploading to PC by USB2.0 Interface.
♦Timer Function
♦Power Supply: LR6 Battery * 6 / rechargeable battery NI/ Charger: Input Voltage 100V to 240V,
♦Frequency 50Hz to 60 Hz, output voltage 12V DC 3A
♦Weight 2.5kg (not including Battery)
♦Size 284mm(L) * 230mm(W) * 125(H)
Temperature compensation
For obtaining the insulation resistance under a temperature other than current ambient temperature.
Converts the measured value of resistance to the insulation resistance under a reference ,temperature,.and display the result.
Depending on the different properties of test objects, there are 10 modes of compensation.

♦Test Voltage Range DC250V to DC5KV
♦Voltage Set:
    Wide adjust: 250V, 500V, 1000V, 2.5kV, 5kV
    Fine adjust: 250V to 1kV, step 25V, 1kV to 5kV, step 100V
♦Accuracy: 5%
♦Step mode: 500V, 1.0kV, 1.5kV, 2.0kV, 2.5kV
♦Test Current 1nA to 3mA

Specification
Set test voltage	Test range	Accuracy
250 V DC	0.01MΩ~  2.5GΩ	±(5%rdg+5dgt)
	2.51GΩ~  250GΩ	±(20%rdg+10dgt)
500 V DC	0.01MΩ~  5.0GΩ	±(5%rdg+5dgt)
	5.01MΩ~  500GΩ	±(20%rdg+10dgt)
1000V DC	0.01MΩ~  10GΩ	±(5%rdg+5dgt)
	10.1GΩ~  500GΩ	±(20%rdg+10dgt)
	501GMΩ~  999GΩ	±(20%rdg+20dgt)
2.5 KV DC	0.01MΩ~  25GΩ	±(5%rdg+5dgt)
	25.1GΩ~  500GΩ	±(20%rdg+10dgt)
	501GΩ~  999GΩ	±(20%rdg+20dgt)
	1TΩ~  2.5TΩ
5KV DC	0.01MΩ~  50GΩ	±(5%rdg+5dgt)
	50.1GΩ~  500GΩ	±(20%rdg+10dgt)
	501GΩ~  999GΩ	±(20%rdg+20dgt)
	1TΩ~  5TΩ
Leak Current
Range	Measuring range	Accuracy
10nA	1.00nA ~ 9.99nA	±(15%rdg+1nA)
100nA	9.0nA ~ 99.9nA	±(15%rdg+5dgt)
1000nA	100nA ~ 999nA	±(2.5%rdg+5dgt)
10uA	0.90uA ~ 9.99uA
100uA	9.0uA ~ 99.9uA
1000uA	90uA ~ 999uA
3mA	0.90mA ~ 3.00mA
Voltage Test
Test mode	DC voltage	AC voltage
Test range	±(50V TO 1000V)	50V TO 750V (50Hz to 60Hz)
Precision error	±(5%rdg+5dgt)
Input resistance	Approx 10MΩ
Temperature test
Measuring range	Measuring precision
-10℃to 0.1℃	±1.5℃
0.0℃to 40.0℃	±1.0℃
40.1℃to 70.0℃	±1.5℃
