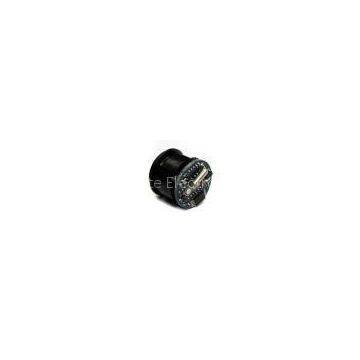

Color Video Camera Board with 1/4-inch CMOS Image Sensor, 420TVL Resolution and 3.3V DC Power Supply
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
2.5-inch TFT LCD HD Portable DVR with Easy Setup Mode and Motion Detection
-
480TVL Video Door Phone Board Camera Module with CMOS OV7960 Image Sensor
-
RS232 Serial Port Camera Module with OV528 Protocol and 640 x 480 VGA Resolution
-
Mini Car Rear-view Camera with Auto White Balance and 480TVL Resolution
-
Mini HD Video CCTV Camera with Good Night Vision and 480TVL Resolution
-
HD Car DVR with Easy Setup Mode, 2.5 Inches TFT LCD Screen and Motion Detection
Product Details
| Brand Name | CCGE | Place of Origin | China | |
| Model Number | CCGE-3016R |
Product Description
Horizontal resolution: 420TVL
Signal system: PAL/NTSC
Validity pixel: 648 x 488
Sync system: inter-sync
Sensitivity: 3.0V/lux-s at 5,600K
Gamma characteristic: automatic
Scanning system:<ul>
NTSC: 525 lines, 60 field/s
PAL: 625 lines, 50 field/s</ul>
Electronic shutter: 1/60s, 20µs
S/N ratio: >48dB
Video output: composite signal 1.0Vp-p/7.5Ω
AWB: auto
Operating temperatures: -10 to +50°C, 95% RH maximum
Storage temperatures: -20 to +60°C, 95% RH maximum
Power supply: 3.3V DC
Dimensions: diameter 15 or 16mm
