zoom stereo microscope
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | FA126350 series |
Product Description
Features

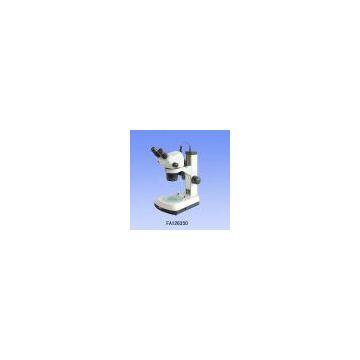

@FA126350 Zoom Stereo Microscope is a erect image microscope, with double horizontal axial drive control knobs, and it is easy to operate.
@Zoom range of zoom body is 0.63X-5X, Zoom ratio is 1:8.
@Auxiliary objectives 0.5X,1.5X, 2X and wide field Objectives 10X,15X,20X are for option.
@Trinocular zoom body microscope can choose to use with CMOS Electronic Eyepiece, photography, CCD device and digital camera.
@The fine zoom ratio, large depth of field and high resolution is suitable to use in the field of viewing of three-dimensional body of natural or engineering, as well as that it is the standard outfits of Education and Research department.
|
Technical Parameter |
|||||||||||
|
@Model:FA126350, FA126350T, FA126350AT, FA126350BT |
|||||||||||
|
Optical Parameter |
|||||||||||
|
Aux. Lens |
WD (mm) |
Eyepiece |
|||||||||
|
10x (φ23/25) |
15x (φ17) |
20x (φ12.5) |
|||||||||
|
Total Mag. |
Total Mag. |
Total Mag. |
|||||||||
|
|
110 |
6.3X-50X |
9.5X-75X |
12.6X-100X |
|||||||
|
0.5X |
|
3.2X-25X |
4.7X-37.5X |
6.3X-50X |
|||||||
|
1.5X |
|
9.5X-75X |
14.2X-112.5X |
18.9X-150X |
|||||||
|
2X |
|
12.6X-100X |
18.9X-150X |
25.2X-200X |
|||||||
|
Standard Outfits |
|||||||||||
|
|
FA126350(Binocular) |
FA126350T(Trinocular) |
FA126350AT(Trinocular) |
FA126350BT(Trinocular) |
|
||||||
|
1 |
Binocular head |
Trinocular head |
Trinocular head |
Trinocular head |
1PC |
||||||
|
2 |
10X Eyepiece |
10X Eyepiece |
10X Eyepiece |
10X Eyepiece |
1Pair |
||||||
|
3 |
Eyepatch |
Eyepatch |
Eyepatch |
Eyepatch |
1Pair |
||||||
|
4 |
The track stand which with top and bottom illuminators |
The track stand which with top and bottom illuminators |
The pole stand which with top and bottom illuminators |
No illuminator pole stand with fluorescent ring lamp |
1Set |
||||||
|
5 |
Dust cap |
Dust cap |
Dust cap |
Dust cap |
1PC |
||||||
|
Optional Accessories |
|||||||||||
|
1 |
WF10X(Φ25),WF15X(Φ17),WF20X(Φ12.5)Wide field Eyepieces |
||||||||||
|
2 |
0.5X,1.5X,2X Auxiliary large Objectives |
||||||||||
|
3 |
0.5X,0.57X, 0.75X CCD Adapters |
||||||||||
|
4 |
Top and bottom LED illuminators:12V/5W illuminators Please click here for more |
||||||||||
|
5 |
|||||||||||
|
6 |
Digital camera Adapter Please click here for more |
||||||||||
|
7 |
Mechanical stage Please click here for more |
||||||||||
|
8 |
130M, 200M, 300M, 500M Pixels CMOS Electronic Eyepiece, Analog camera ,Digital camera, VGA industry camera |
||||||||||
