professional monitor for microscope

Features:
     The professional Monitor for Microscope of our company has high stability and reliablity, the electronic cable display position has no drift any more. The electronic cable overlay to the output signal of CCD camera, displayed on the monitor and can adjust or locate by requirement. Applicable to CCD monitoring location system, microwelding system display and locating, magnetic head production line installing and locating indication, printed circuit board (PCB)test, frock clamp location and the simulator program location of digital controlled drill, etc. If used with horizontal contrast instrument to check the irregularity of workpiece, it can display the digital and application intuitively. The product is widely used in adapter pin strip, small size transformer, IC pin planeness and pin distance, online contrast checking of planeness.
Products characteristic:
◆Lines type: Crosshair, crosshair reticle, crisscross, three horizontal lines and four horizontal lines.
◆Displayed: 8 inch, 10 inch, 15 inch
◆Input: VGA, AV, BNC

uModel: FK221508

uName: Crosshair reticle program monitor
uOverview: Single crosshair displayed on screen, horizontal and vertical lines both at 5mm coordinate.
uCharacteristic: Fixed lines and irremovable.
uOperation: AV/TV key control the display of crosshair.
uFitting size: 8 inch,10 inch.

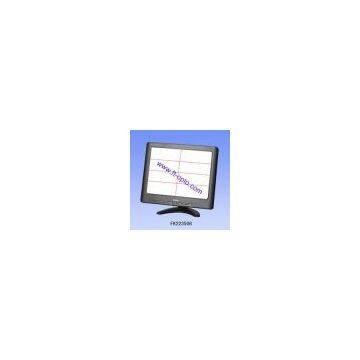

uModel: FK223508

uName: Three horizontal lines program monitor

uOverview: Three horizontal coordinate lines and one vertical coordinate line can be displayed.

uCharacteristic: The horizontal lines can be move horizontally, the vertical line is fixed.

uOperation: UP(Coordinate lines option)
              DOWN(Power switch of coordinate lines)
              V-/V+( Movement of coordinate lines)
              Movement distance: 5mm

uFitting size: 8 inch,10 inch.

uModel: FK224010

uName: Four horizontal lines program monitor

uOverview: Has two parts of coordinate display―― Single pixel horizontal coordinate and dual pixels horizontal coordinate, displayed by two status.

uCharacteristic: Coordinate position movement, Coordinate figure display, Coordinate color change( 8 colors) etc.

uOperation: POWER: Coordinate lines option
      AV/TV: Power switch of coordinate lines (Can make any coordinate line displayed or not.)
      MENU: Option of coordinate color (Can set the color of any coordinate lines, 8 colors is for option.)
      UP/DOWN: Position movement of coordinate lines
      V
