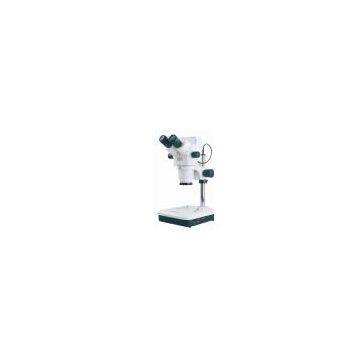

zoom stereo microscope

Technical Parameter

@Model:FA110750(Binocular), FA110750T(Trinocular)
@Eyepiece: Standard of 10X ,with 15X,20X,25X,30X optional
@Viewing head: 30° inclined Binocular, Trinocular Viewing head
@Interpupillary adjusting distance:55-75mm
@Zoom range of zoom body :0.7X-5X
@Zoom ratio : 7.1:1
@Auxiliary objective: 0.5X,1.5X,2X are for option
@Total magnification:3.5X-300X(Contain Auxiliary objective and optional eyepiece)
@Field of view :0.7mm-62mm(Contain Auxiliary objective and optional eyepiece)
@Working distance:129.5mm(Standard), 50-192mm(With Auxiliary objective)
@Diopter correction of Eyepiece:±5 Diopter

Optical Parameter

Aux. Lens

WD (mm)

Eyepiece

10x  (φ22)

15x  (φ16)

20x (φ13)

25x (φ9)

30x (φ7)

Total Mag.

Total Mag.

Total Mag.

Total Mag.

Total Mag.

129.5

7X-50X

10.5X-75X

14X-100X

17.5X-125X

21X-150X

0.5X

192

3.5X-25X

5.25X-37.5X

7X-50X

8.75-62.5X

10.5X-75X

1.5X

72

10.5X-75X

15.75X-112.5X

21X-150X

26.25X-187.5

31.5X-225X

2X

50

14X-100X

21X-150X

28X-200X

35X-250X

42X-300X

Standard Outfit

FA110750(Binocular)

FA110750T(Trinocular)

1

Binocular head

Trinocular head

1PC

2

10× Wide viewing Plan-Eyepiece

10× Wide viewing Plan-Eyepiece

1Pair

3

Stage plate(Frosted glassφ95)

Stage plate(Frosted glassφ95)

1PC

4

Photo unit

1Set

5

Tungsten-halogen lamp:
6V/15W(With reflected bowl)(Oblique lampe)

Tungsten-halogen lamp:
6V/15W(With reflected bowl)(Oblique lampe)

1Set

6

U type fluorescent light:
220V/7W(Transmition lamp)

U type fluorescent light:
220V/7W(Transmition lamp)

1Set
