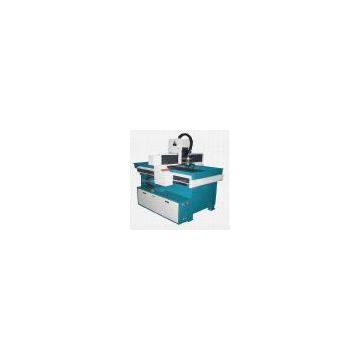

D1300W-4 Woodworking CNC Router

Applicable:

Wood, Plastic, Aluminum, Di-Bond, Engraving Board, Foamex. Engineering plastics, marble, acrylic, Perspex, PVC, Composite panel, Copper, Alloys, MDF, etc.

Features:

1.Light grid steel welded structure. high intensity and small vibration

2.High-strength aluminum alloy table.

3.X.Y axis rack and pinion drive, Z axis precision ball screw drive ensure accurate cuts and speed.

4.24000rpm domestic high-performance spindle.

5.PC-based CNC control system.

6.High speed stepper motor.

7.Precision rectangular linear guide way, ensure the working accuracy and the long service life.

8.CE Approved.

9.High-pressure water cooling spraying device to prevent the stone work piece from bursting.

10.Machine four of the same products to improve work efficiency.

Specifications

Machine Space-Overall(mm): 1800*1800*1400mm

Max working size(mm): 1300*1300*130mm

Frame: Steel Frame

Table Type: T-slot aluminum profile

Spindle: 1.5kw*4 (Option:2.2kw)

Control System: NC6B control software(Option DSP System software)

Guide way: Taiwan Hiwin 20mm rectangle guide rail

Rail way: X.Y axis Rack and pinion, Z axis Precision ball screw

Drive type: Stepper motor(Option: Servo)

Resolution(mm): 0.02mm

Repeatability precision: 0.02mm

Speed:24000rpm

Tool holder diameter:3.175-18mm

Travel speed:14000mm/min

Cutting speed:5000mm/min

Voltage:220v/50Hz

Weight:1000kg

Note: Dimensions and design characteristics shown on this catalog are subject to change without prior notice .
