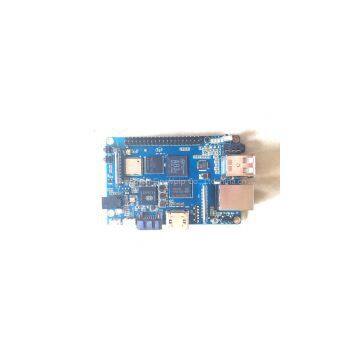

Banana pi BPI-M3 octa-core SBC development board support wifi,bluetooth,EMMC,SATA port

ntroduction:

Banana PI BPI-M3 is the open source hardware platform,Banana PI BPI-M3 is an octa core version of Banana Pi ,Banana PI M3 is the octa core more better than the Banana Pi M2,it support WIFI onboard. support SATA port.

Banana Pi BPI-M3 series run Android,Debian linux,Ubuntu linux, Raspberry Pi imange and others imange.

Banana PI BPI-M3 hardware: 1Ghz ARM7 octa-core processor, 2GB LPDDR3 SDRAM, add 8G eMMC flash on board

Banana PI with Gigabit ethernet port, It can run with Android 5.1.1 smoothly. The size of Banana PI BPI-M3 same as banana pi M1, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi B+ and can run the ROM Image

1, Octa-core CPU Allwinner A83T (Higher Performance than Raspberry pi 2)
2,40 PIN compatible Rapberry Pi 2 generations
3,RAM: 2G LPDDR3
4,Storage : Onboard 8G eMMC flash.support TF card boot and eMMC boot.
5,SDIO interfaces on-board wireless WIFI&Bluetooth BT4.0
6,Provides CSI,DSI,Audio,2*USB ,1*OTG interfaces
7,Support TF card
8,Fiexible(External) WIFI&BT antenna Connection or on-board antenna
9,Support SATA port

The Banana Pi BPI-M3 is SinoVoip latest single board computer equipped with an Octa Core processor using the A83T TSMC 28nm chip,based on eight ARM Cortex-A7 CPU core operating at high frequency up to 2.0GHZ.Board hardware specs include 2G DDR3 memory operating frequency up to 800Mhz capable of smooth playback at 190*1200HD resoltion.Following the A31/A31s design A83T has a PowerVR SG*544 GPU runs at frequencies up to around 700MHZ with high image processing performance ensuring the ultimate gaming experience and fluency.

In Multimedia processing,A83T can play 1080P@60fbs including 1080P@20fps videos with H.265 codec support,More than sufficient to meet the needs of end-users daily audio-visiual entertainment.

A83T built ISP image signal processor can support 8MP camera interface and also integrates a full-color display Lai Chip technology that enhances image display quality,not only for the end-users,it brings a more vivid visual experience,while optimizing degree in pastel colors and enhance the end-user,even minimizing eyesight damages especially to children.

Integrated full hardware security system is another major feature of the A83T supports DRM solutions which include high-grade Widevine Level1. HDCP 2.* for Miracast support secure boot \\secure storage capabilities to ensure the security system and data.In the power saving area 28nm advanced technology uses high energy-effieient.Cortex-A7 architecture,Performance and power consumption is very balanced in the PoweVR 5 GPU series due to software optimization.

BPI-M3  hardware Interfact

Hardware Spec:
