SinoV-1600/3200 16-32 fXs/fxo voip SIP IAD gateway

FOB Price

USD $600 - $600 / Pole

1 Pole(Min.Order)

Supply Ability 1000 Pole / Poles per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SinoV		Place of Origin	China
Model Number	SinoV-800

Product Description

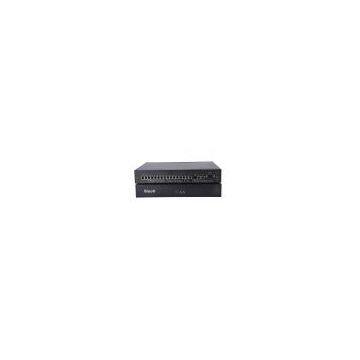

The SinoV-3200 is a SIP-based analog voice gateway that provide voice/fax communication over the IP network (VoIP/FoIP). It links traditional telephony networks to IP networks with conventional telephony devices such as analog phones or fax machines.

The highly flexible call routing settings allow the administrator to configure different routes for calls based on the dialed number. Both proxy based calls and peer to peer calls are supported simultaneously. It supports phone book to place peer to peer calls without going through a VoIP server. By routing calls over the Internet or any IP network, this gateway can reduce or eliminate long distance or inter-office phone charges. Corporations can also enjoy the benefits of network consolidation and improved controllability of the telephone system.

Features and Specifications:

Call Control Protocols	SIP
Number of Ports	·Up to 8 FXS/FXO, 4FXS4FXO/8FXO(RJ-11 connector)
·1 WAN 10/100Base-T ethernet(RJ-45 connector)
·1 LAN 10/100Base-T ethernet(RJ-45 connector)
·1 console(RS-232 connector)
Voice CODECs	G.729A, G.723.1, G.711 a/ulaw
Network Protocols	IPv4,TCP,UDP,PPPoE,DHCP,DNS,NAT,Telnet,HTTP,FTP,TFTP
Configuration and Management	·Web-based GUI
·Console, telnet command line
·Centralized network management
·IP configuration setting through IVR
Firmware Update	Local file, FTP, TFTP and HTTP
Telephony Features	·Hot-line call
·Dial plan
·Speed dial
·Phone book
Telephony Signaling	·DTMF tone dectection/generation
·DTMF relay: in-band, RFC 2833 and SIP info
·Call forward: unconditional, no answer and busy
·N-way conferencing
·Caller ID disply/generation
Fax	T.38 fax
Voice Quality	·Echo cancellation
·Silence suppression(voice activity detection, comfortable noise generation)
·Adaptive jitter buffer
LEDs	1 power, 2 WAN (10M and 100M), 2 LAN (10M and 100M) and 8 ports
Power Supply	Input 12V DC/1.2A
Dimensions	285(W) x 150(D) x 35(H) mm
Weight	2.1kg
Operating Environment	·Operating temperature: 0 - 50ºC
·Operating humidity: 10 - 90%
Warranty	12 Months
