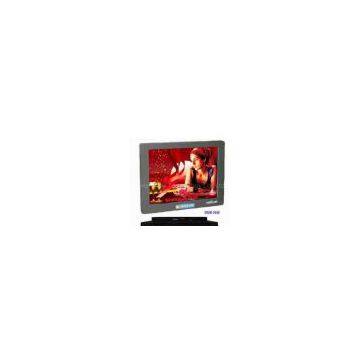

HSIM-1040 10.4'' Industrial LCD Monitor

Optical Spec

Model No.

HSIM-1040

Panel

TFT LCD Panel

Panel size

10.4''

Resolution

800*600

Aspect Ratio

4:3

Brightness

400 nits

Contrast Ratio

500:1

Pixel Pitch

0.264(H)*0.264(V)

Viewing Angle ( H/V)

170° (H)/170° (V)

Response time

Less than 8ms

Colors

16.7M

Back light type

LED

Hardware Spec

Interface

Standard VGA Input : D-Sub15 pin,

Optional Interface

DVI. , RS232, USB. HDMI, S-Video(Optional)

Power

Input : 100 ～ 240V , 50~60Hz / Output : DC 12V, 3.5A

OSD Control

?Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language..

Temperature

Temperature: -40°C to 80°C (Operating) / -45°C? to 85°C (Storage )

Humidity

Humidity : 10% RH to 90% RH Operating / 10% RH to 90% RH Storage

Power Consumption

45 Watts ( Max )

Plug & Play

DDC 1/2B

Accessories

15-PIN VGA cable, Power cord, AC adaptor

Mounting

Panel-Mount, Rear-Mount, VESA 75mm/100mm(optional as required)

Net weight/Gross weight

kg/kg

External Dimension

264mm×210mm×38mm（W×H×D）

Package Dimension(total)

TBD
