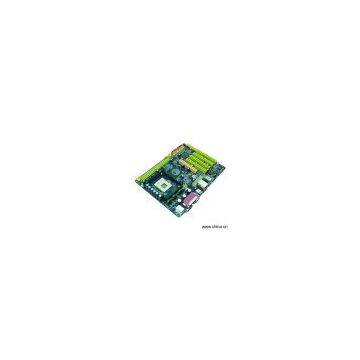

Sell Motherboard (LGA 775 SIS661)

Model No.:TJ-P4M800
Product Origin:China
Brand Name:ITZR
Price Terms:FOB Shenzhen / Hong Kong
Payment Terms:
Certification:
Description:Features: 1) CPU: LGA 775for Intel Pentium 4, HT processor 2) FSB: 800 / 533 / 400MHz 3) Chipset: SIS661 +963L 4) VGA embedded UniChrome 3D graphics with 64MB share memory 5) Memory: 2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR400 / 333 / 266) 6) Maximum: 2GB 7) Expansion slots: 1 x AGP 8X, 4 x PCI slots 8) LAN REALTEK 8100 10/100Mbps fast Ethernet PHY 9) Audio: ALC101 2-channel audio CODEC 10) Compliant with AC '97 2.3 specification 11) IDE: 2 x UltraDMA 133/100/66 12) Back panel I/O ports: a) 1 x PS/2 keyboard b) 1 x PS/2 mouse c) 1 x parallel port d) 1 x serial port e) 1 x VGA port f) 4 x USB2.0 ports g) 1 x RJ 45 port h) 1 x audio I/O (line-in, line-out and Mic-in) 13) Internal I/O connectors and headers: a) 20-pin ATX power supply connector b) 4-pin ATX 12V power supply connector c) 2 x USB2.0 header support additional 4 USB2.0 ports d) 2 x Serial ATA connectors e) 1 x front panel switch/LED header f) 1 x front panel audio header g) CPU / CHS FAN headers h) 1 x IrDA for SIR header i) 1 x speaker header j) 1 x CD in header k) 1 x floppy connector-support 360KB - 2.88MB, 3 mode FDDs or LS120 14) System BIOS: Award 2MB flash ROM 15) Supports plug and play: 1.0A, APM1.2, multi boot, DMI 16) Fully supports ACPI revision 1.0 specification
