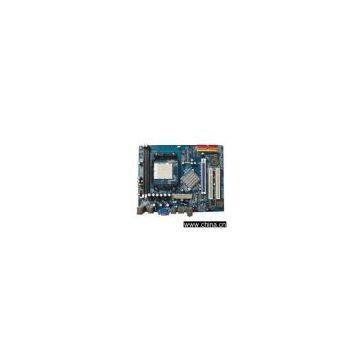

Motherboard (K8M800 for AMD AM2 CPU)

Place of Origin	China

Specifications:1) CPU: socket 940 for AMD AM2processor 2) FSB: 800MHz 3) Chipset: VIA K8M800 / 8237 4) VGA embedded UniChrome II 3D graphics with 64MB share memory 5) Memory: 2 x DDR2 SDRAMs (DDR2 400 / 333 / 266) 6) Max.: 2GB 7) Expansion slots: 1 x AGP 8X, 2 x PCI slots, 1 x CNR slot 8) LAN VIA VT6103 10 / 100Mbps fast Ethernet PHY 9) Audio: ALC655 6-channel audio CODEC 10) Compliant with AC'97 2.3 specification 11) IDE: 2 x UltraDMA 133 / 100 / 66 12) Back panel I/O ports: a) 1 x PS/2 keyboard b) 1 x PS/2 mouse c) 1 x parallel port d) 1 x serial port e) 1 x VGA port f) 4 x USB2.0 ports g) 1 x RJ 45 port h) 1 x audio I/O (line-in, line-out and Mic-in) 13) Internal I/O connectors and headers: a) 20-pin ATX power supply connector b) 4-pin ATX 12V power supply connector c) 2 x USB2.0 header support additional 4 USB2.0 ports d) 2 x serial ATA connectors e) 1 x front panel switch/LED header f) 1 x front panel audio header g) FAN1 / FAN2 headers h) 1 x IrDA for SIR header i) 1 x speaker header j) 1 x CD in header k) 1 x floppy connector-support 360KB - 2.88MB, 3 mode FDDs or LS120 14) System BIOS: AMI 2MB flash ROM 15) Supports plug and play: 1.0A, APM 1.2, multi boot, DMI 16) Fully supports ACPI revision 1.0 specification 17) ITZR copyright 2006 Inner packing: Retail box Outer packing: 20pcs/ctnCarton dimensions: 50 x 48.5 x 33cmG.W.: 17kg producing area:China supplying capacity:800,000pcs/month
