China Good Quality 55inch Lcd Monitor Video Wall (HQ550-V,narrow Bezel 5.3mm)
- shenzhen
- Credit Card
You May Like
-
New Arrival 55inch Lcd Video Wall Media Display (HQ550-V,narrow Bezel 5.3mm)
-
55inch Ultra Narrow Full hd Lcd Video Wall Monitor (HQ550-V,narrow Bezel 5.3mm)
-
55inch Backlit Led Indoor Lcd Video Display Cheap (HQ550-V,narrow Bezel 5.3mm)
-
LED Backlight 46inch 5.3mm Bezel DID LCD Video Wall Display(HQ460-V,support Touch and Pc)
-
46inch 450 Cd/m2 High Brightness Indoor LCD Display Video Walls (HQ460-V,support Touch and Pc)
-
46inch Super Narrow Bezel Exhibition Lcd Video Wall 2x2 Video Wall (HQ460-V,support Touch and Pc)
Product Details
| Place of Origin | Guangdong, China | Brand Name | CHIMEE | |
| Model Number | HQ550-V | Type | TFT |
Product Description
Specifications
china good quality 55inch lcd monitor video walltal outer frame
2.SAMSUNG DID LCD Screen
product name: china good quality 55inch lcd monitor video wall (HQ550-V,narrow bezel 5.3mm)

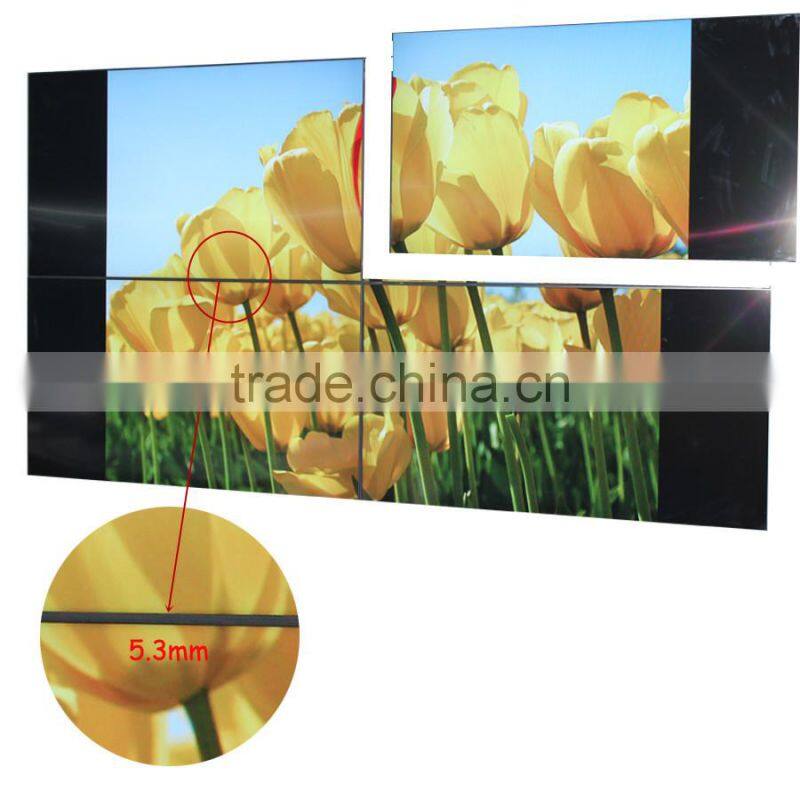

narrow bezel 5.3mm(450cd/m2 or 700cd/m2)
Model NO HQ550-V
Panel size 55'' Samsung DID LCD Screen narrow bezel 5.3mm
Aspect Ratio 16:9
Max Resolution Support 1920*1080
Color 8Bit,16.7M
Brightness (nits) 450cd/m2 or 700cd/m2
Contrast 4000:1
viewing angle(HxV) 178°
Response Time 5ms
panle life >50,000hours
Panel Brand DID LCD Screen

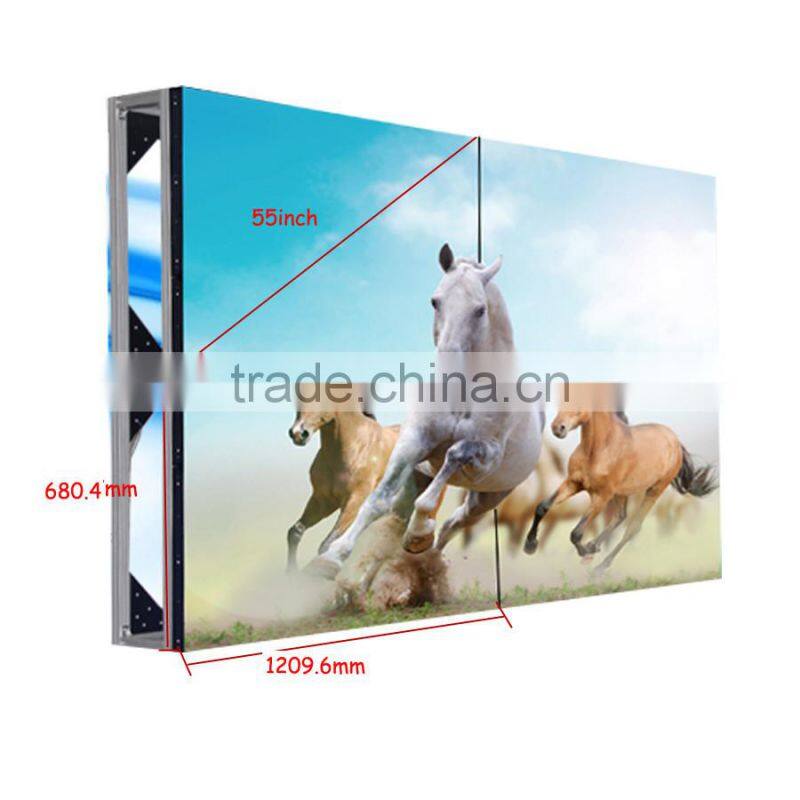

Active Area 1209.6(H)X680.4(V)
backlight LED
HDMI Input 1
VGA Input 1
DVI Input 1
Composite Video Input/Output(AV) BNCx2
Control Signal input and loop out RS232(RJ45-8)
Split Screen Support Picture in Picture
| D525 | I3 | I5 | I7 |
CPU | Intel Atom D525 (Dual Core) | Inte i3 (Dual Core) | Intel i5 (Quad Core) | Intel i7, Quad Core |
RAM | DDR III / 1333 / 2G (Up to 4GB) | DDR3 / 4GB / 1333MHz (Up to 16GB) | DDR3 / 4GB / 1333MHz (Up to 16GB) | DDR3 / 8GB / 1333MHz (Up to 16GB) |
Chipset | NVIDIA ION2 Chipset | H61 Chipset | ||
Graphics | NVIDIA GT218 | Integrated with CPU | ||
H.D.D. | 320G HDD or 64G SSD | |||
NIC | 10/100/1000M Auto-adjust Gigabit Ethernet Controller | |||
Wi-Fi | 150Mbps 802.11n Wi-Fi Integrated | |||
Audio | HD 8 channel audio system | |||
Speaker | 2 build-in high quality stereo speakers (3w or 5w) | |||
O.D.D | DVD-RW (Optional) | |||
Mouse/Keyboard Bluetooth suit | Optional | |||
Tv tuner | optional | |||
Pre-Installed OS | Windows 8/ VISTA / 7 or Linux (Setting Official Version will be added extra cost) | |||

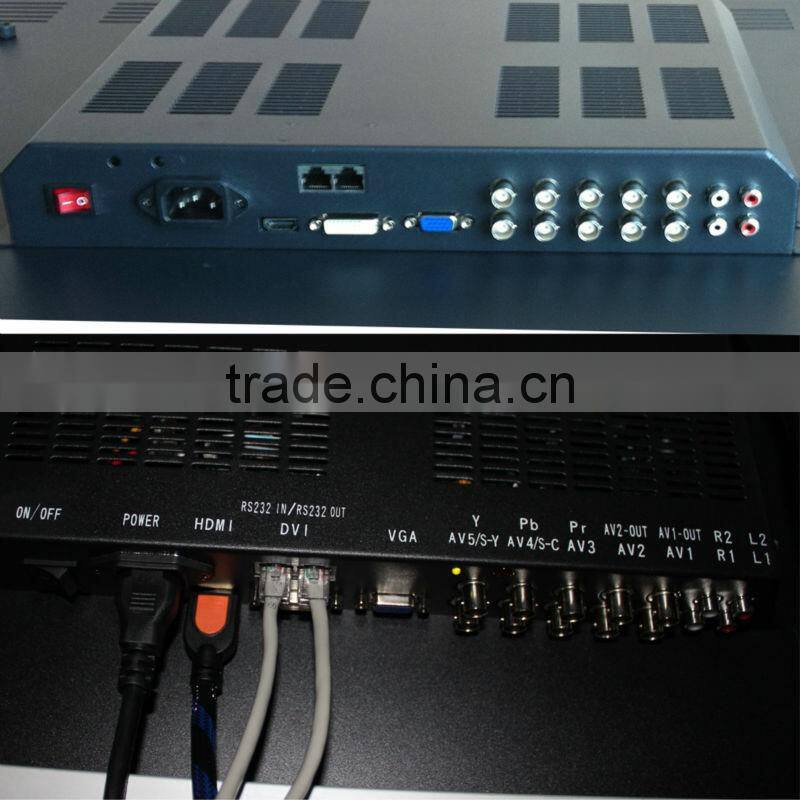

| Input | CVBS | 3*BNC inputs, support PAL/NTSC, 2*BNC loop outputs | |||||||||||
| VGA | 1* D15 port, support SVGA/XGA/WXGA | ||||||||||||
| YPbPr | 1* YPbPr Input, Support PAL/NTSC | ||||||||||||
| Y/C | 2* BNC inputs, support PAL/NTSC | ||||||||||||
| Output | LVDS | Support single or double LVDS output, and WUXGA(1920*1080) | |||||||||||
| Operate Mode | Panel key operation (Need customization) | ||||||||||||
| Infrared Remote Control Operation | |||||||||||||
| Standard RS232 port (provide free control software) | |||||||||||||
| Engineering Software | Customized | ||||||||||||
| Temperature | -20°C ~ 50°C | ||||||||||||
| Humidity | 5% ~ 95% | ||||||||||||
| Power Supply | AC 110V ~ 240V, 50/60Hz | ||||||||||||
| Power Consumption | Max 300W, according to different screen models | ||||||||||||
| Processor Size | 307×282×53.8 (mm) | ||||||||||||
| Weight | 19Kg to 45Kg | ||||||||||||

one:
Two:
1.Q:what HS code for LCD monitor ?
A:85285110 lcd monitor
2.Q:how long is your warranty? And what’s the detail content?
A:one year warranty from the shipping date. And it is ok upgrade to two or three years guarantee with additional cost
Under guarantee: Free spare parts shipping, after checking by pictures and videos, if we confirm the damage not cause by human, we will ship spare parts to do the replacement for free.
Out of guarantee: we offer repairing parts at lower cost, and service free in charge.
3Q:what payment can you accept?
A:HSBC T/T,western union,paypal
For sample order:100% payment
For bulk orders:30% deposit in advance to start the production. balance payment clear before the delivery.
