Home > Products > LCD CCTV monitor > 46inch Interactive Hdmi Video Wall Controller(HQ460-V,2X2 Models,5.3mm or 6.7mm)
46inch Interactive Hdmi Video Wall Controller(HQ460-V,2X2 Models,5.3mm or 6.7mm)
- shenzhen
- Credit Card
You May Like
-
46inch Lcd Ultra Narrow Bezel Exhibition Video Wall (HQ460-V,2X2 Models,5.3mm or 6.7mm)
-
46inch Video Wall LCD Display Monitos for Advertising (3*3 )
-
10.4 Inch Tft Advertising Player Lcd tv Advertising Display
-
10.4 Inch Tft Digital Signage Indoor Advertising Screen
-
10.4 Inch Tft Digital Signage Advertising Display Systems
-
10.4 Inch Tft Digital Signage Lcd Screen Advertising Lcd Display
Product Details
| Place of Origin | Guangdong, China | Brand Name | CHIMEE | |
| Model Number | HQ460-V | Type | TFT |
Product Description
Specifications
46inch interactive hdmi video wall controllertal outer frame
2.SAMSUNG DID LCD Screen
3.IR touch frame can be added
product name:46inch interactive hdmi video wall controller(HQ460-V,2X2 models,5.3mm or 6.7mm)

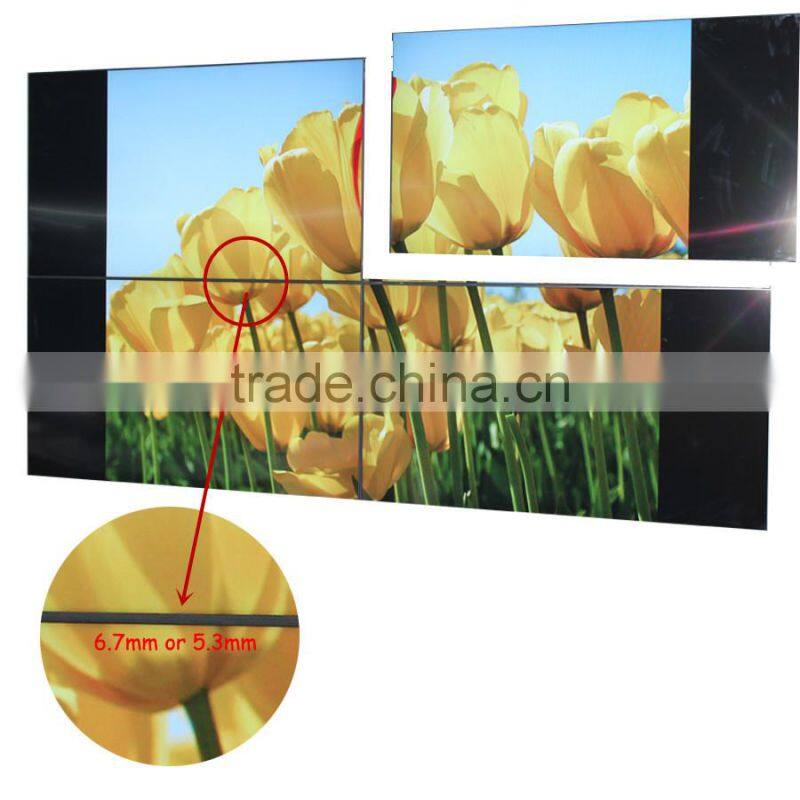

narrow bezel 6.7mm(450cd/m2 or 700cd/m2)or 5.3mm(450cd/m2 or 700cd/m2)
Model NO HQ460-V
Panel size 46'' Samsung DID LCD Screen narrow bezel 6.7mm&5.3mm
Aspect Ratio 16:9
Max Resolution Support 1920*1080
Color 8Bit,16.7M
Brightness (nits) 450cd/m2 or 700cd/m2
Contrast 4000:1
viewing angle(HxV) 178°
Response Time 5ms
panle life >50,000hours
Panel Brand DID LCD Screen
Active Area 1018.08(H) x 572.67(V)
backlight LED
HDMI Input 1
VGA Input 1
DVI Input 1
Composite Video Input/Output(AV) BNCx2
Control Signal input and loop out RS232(RJ45-8)
Split Screen Support Picture in Picture
| D525 | I3 | I5 | I7 |
CPU | Intel Atom D525 (Dual Core) | Inte i3 (Dual Core) | Intel i5 (Quad Core) | Intel i7, Quad Core |
RAM | DDR III / 1333 / 2G (Up to 4GB) | DDR3 / 4GB / 1333MHz (Up to 16GB) | DDR3 / 4GB / 1333MHz (Up to 16GB) | DDR3 / 8GB / 1333MHz (Up to 16GB) |
Chipset | NVIDIA ION2 Chipset | H61 Chipset | ||
Graphics | NVIDIA GT218 | Integrated with CPU | ||
H.D.D. | 320G HDD or 64G SSD | |||
NIC | 10/100/1000M Auto-adjust Gigabit Ethernet Controller | |||
Wi-Fi | 150Mbps 802.11n Wi-Fi Integrated | |||
Audio | HD 8 channel audio system | |||
Speaker | 2 build-in high quality stereo speakers (3w or 5w) | |||
O.D.D | DVD-RW (Optional) | |||
Mouse/Keyboard Bluetooth suit | Optional | |||
Tv tuner | optional | |||
Pre-Installed OS | Windows 8/ VISTA / 7 or Linux (Setting Official Version will be added extra cost) | |||
| Input | CVBS | 3*BNC inputs, support PAL/NTSC, 2*BNC loop outputs | |||||||||||
| VGA | 1* D15 port, support SVGA/XGA/WXGA | ||||||||||||
| YPbPr | 1* YPbPr Input, Support PAL/NTSC | ||||||||||||
| Y/C | 2* BNC inputs, support PAL/NTSC | ||||||||||||
| Output | LVDS | Support single or double LVDS output, and WUXGA(1920*1080) | |||||||||||
| Operate Mode | Panel key operation (Need customization) | ||||||||||||
| Infrared Remote Control Operation | |||||||||||||
| Standard RS232 port (provide free control software) | |||||||||||||
| Engineering Software | Customized | ||||||||||||
| Temperature | -20°C ~ 50°C | ||||||||||||
| Humidity | 5% ~ 95% | ||||||||||||
| Power Supply | AC 110V ~ 240V, 50/60Hz | ||||||||||||
| Power Consumption | Max 300W, according to different screen models | ||||||||||||
| Processor Size | 307×282×53.8 (mm) | ||||||||||||
| Weight | 19Kg to 45Kg | ||||||||||||
2Kinds of mounting brackets optional:
Two
1.Q:what HS code for LCD monitor ?
A:85285110 lcd monitor
2.Q:how long is your warranty? And what’s the detail content?
A:one year warranty from the shipping date. And it is ok upgrade to two or three years guarantee with additional cost
Under guarantee: Free spare parts shipping, after checking by pictures and videos, if we confirm the damage not cause by human, we will ship spare parts to do the replacement for free.
Out of guarantee: we offer repairing parts at lower cost, and service free in charge.
3Q:what payment can you accept?
A:HSBC T/T,western union,paypal
For sample order:100% payment
For bulk orders:30% deposit in advance to start the production. balance payment clear before the delivery.
