BQK1813, 1400mm Spindle Less Wood Veneer Lathe

About Spindle less Wood veneer Lathe

Spindle less wood veneer lathe is an important production equipment for plywood manufacturing plant; It mainly functions to peel the small diameter log to the Min 25-40mm diameter finally, greatly improve the using rate of wood source.

Spindle less wood veneer lathe commonly use 3 rollers to drive the log rotates for peelingand get 0.5-3mm thickness veneer. The log on it should be round and without skin, it will damage the knife easily.

LIHENG Brand new Spindle less wood veneer lathe is of heavy duty model, using cast iron for machine body building, with steady working performance and long working life, is first choice for most plywood manufacturing plant.

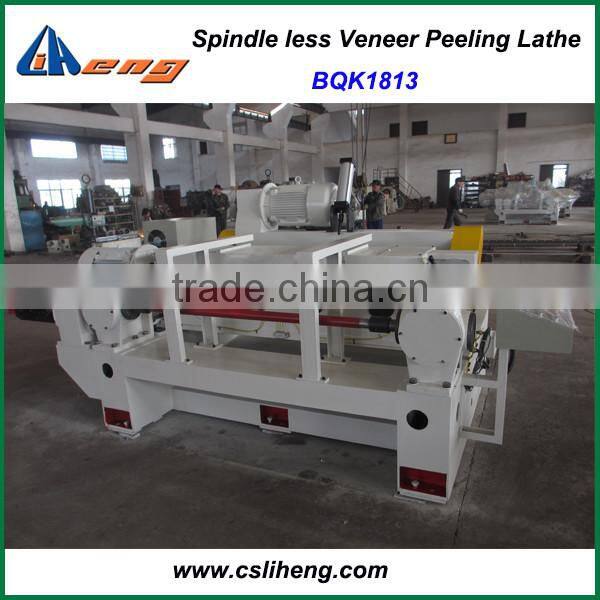

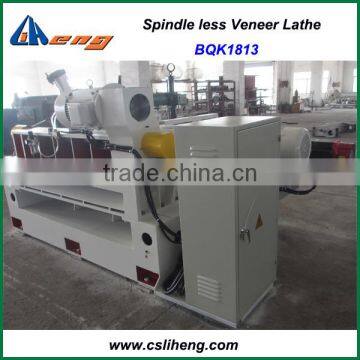

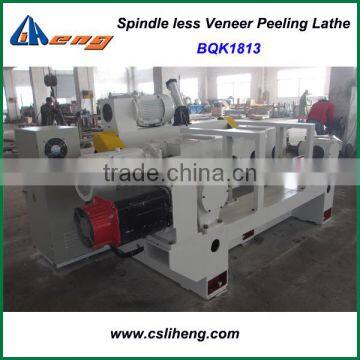

Picture of Spindle less wood veneer lathe

Specificaiton of Spindle less wood veneer Lathe

Model: BQK1813

Woking length: 1400mm;

Working diameter: 350mm;

Final wood core: 30mm;

Veneer thickness: 0.5-3mm;

Output speed: 45m/min;

Power: 22.5kw;

Weight: 4500kg;

Dimension: 2800*1600*1050mm

Advantages of Spindle less wood veneer Lathe

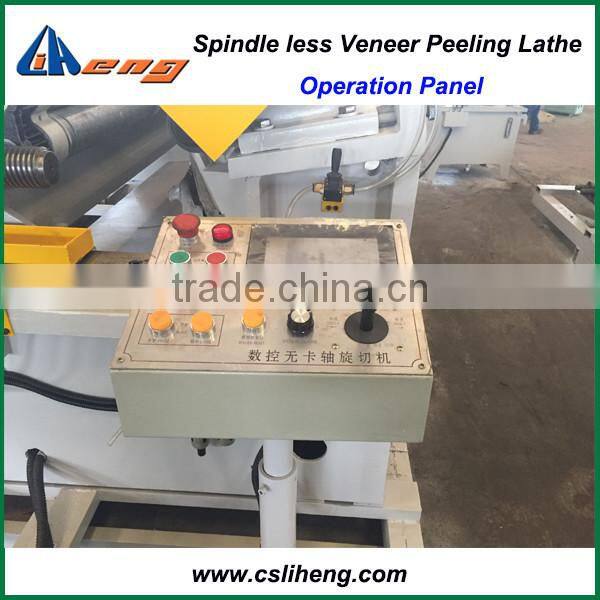

1. Integrated operation panel

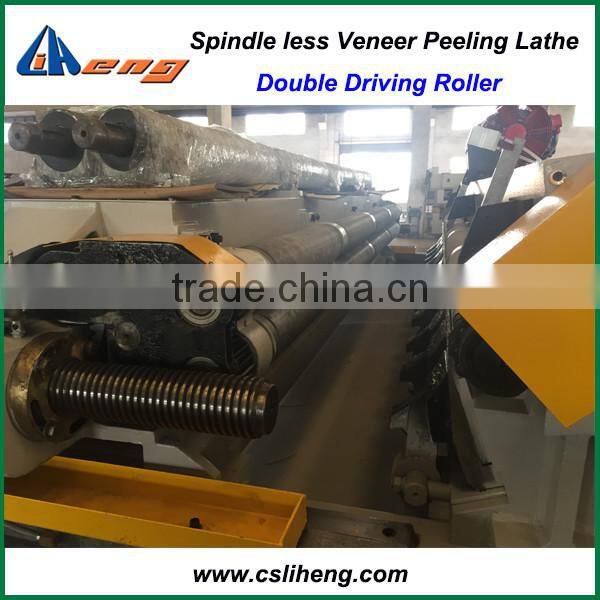

2. Double driving roller feeding

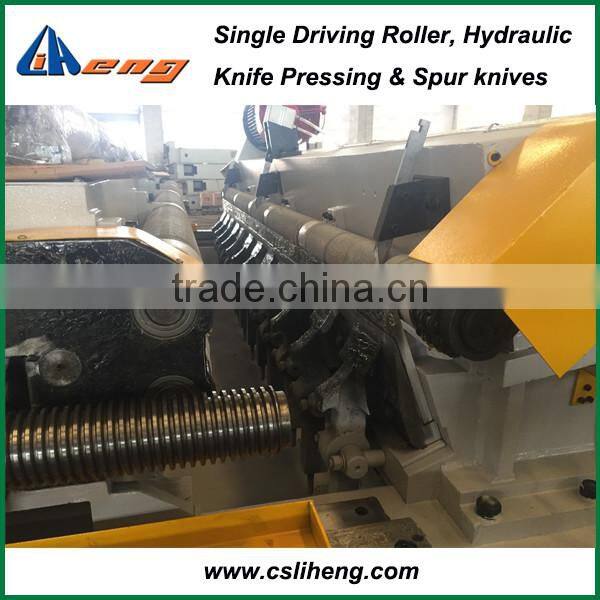

3. Knife pressed hydraulicly, with spur knife

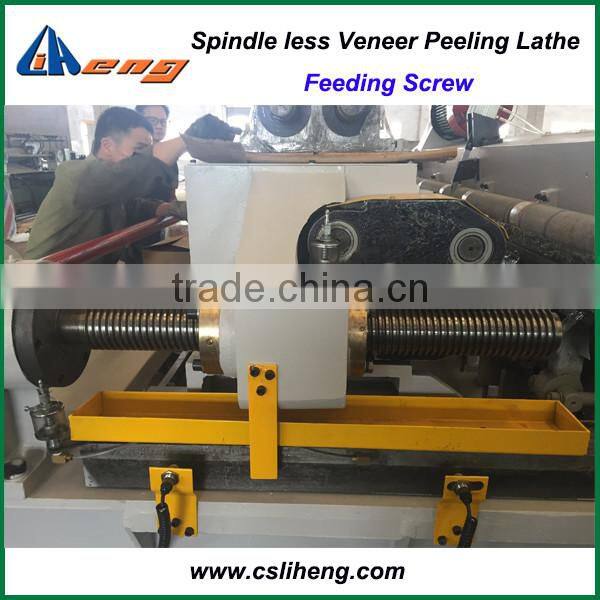

4. Feeding screw used for double roller feeding

5. Servo motor used for feeding

 1. Packing of Spindle less wood veneer lathe:

With pallet, Not suitable for plywood box packages because of the big size;

2. Shipment of Spindle less wood veneer lathe

By train or van, by sea container

 1. High quality Spindle less wood veneer lathe machine;

2. Engineer instalation and training on request;

3. Related spare parts and wear parts in long term;

4. Multi chocie machine model for different customer's requirements;

5. Other related plywood machine model like Spindle wood veneer lathe, veener clipper, veneer dryer, glue soreader, pre press machine, hydraulic hot press machine, plywood sanding machine, plywood trimming saw, veneet splicer, knife grinder, hydraulic lift platform.

About Changshu Xingliheng Wood Machinery Co.,Ltd

Changshu Xingliheng Wood Machinery Co.,Ltd is a professional wood machine manufacturer in China supplying the best solutions for plywood manufacturing.  Xingliheng focus on production technology development since its establishment, and continuously improve the machine quality, now, our machine has been installed in Malaysia, Indonesia, Vietnam, Sri Lanka, Myanmar, Egypt, Ghana, Camerron. Russian, Ukraine, Poland, Fiji etc, with good reputations.

Xingliheng Company located in Changshu City, Jiangsu Province, China, only 1 hours from Shanghai City. Xingliheng people warmly welcome worldwide friend visit us for long term cooperation.

For High quality spindle less wood veneer lathe, welcome contact:
