Veneer Rotary Cutting Machine
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, Veneer peeling lathe | |
| Place of Origin | Jiangxi, China | Brand Name | XINGDA | |
| Model Number | BQ1221 | Voltage | 380V or else | |
| Power(W) | 7500 | Dimension(L*W*H) | 7700(L)*1900(W)*2560(H)mm | |
| Weight | 17ton | Certification | Patent | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
BQ1221 Single Chuck Veneer Rotary Cutting Machine
Usage:
It is one of the main machines in plywood production. Usually used to peel the wooden log.
Characteristics:
1. This veneer rotary cutting machine dopts servo motors.
2. Hydraulic system has been used to drive the chuck.
3. It is much safer and better in maneuverability by the control buttons on electric cabinet.
4. Customized machines are available according to different clients from different countries.
Technical parameters:
Model | BQ1221 | ||
Max. Peeling Length (mm) | 2000mm | ||
Max. Peeling Diameter (mm) | 1500mm | ||
Final Wooden Core Dia. (mm) | 120mm | ||
Veneer Thickness (mm) | 0.5~3mm | ||
Rotating Speed of Shaft (rpm) | 0~200 | ||
Power (kw) | 75 | ||
Dimensions (L*W*H) mm | 7700(L)*1900(W)*2560(H) | ||
Net Weight (kg) | 17000kg |

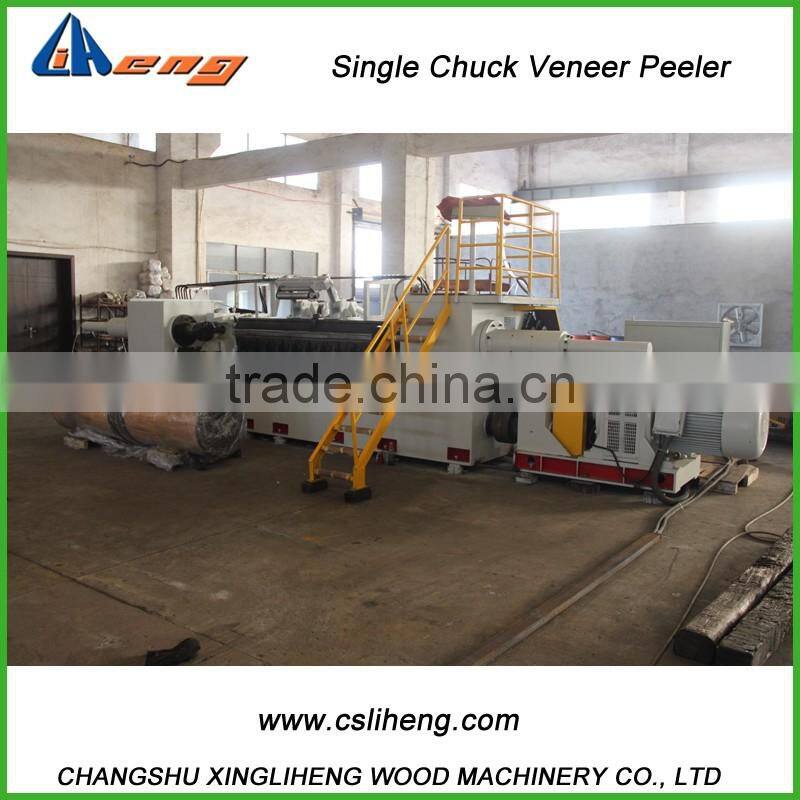

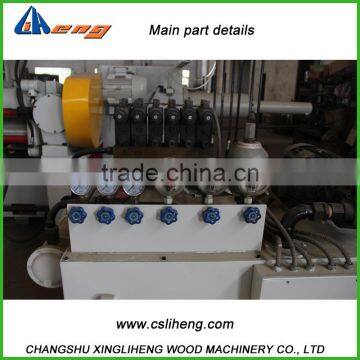

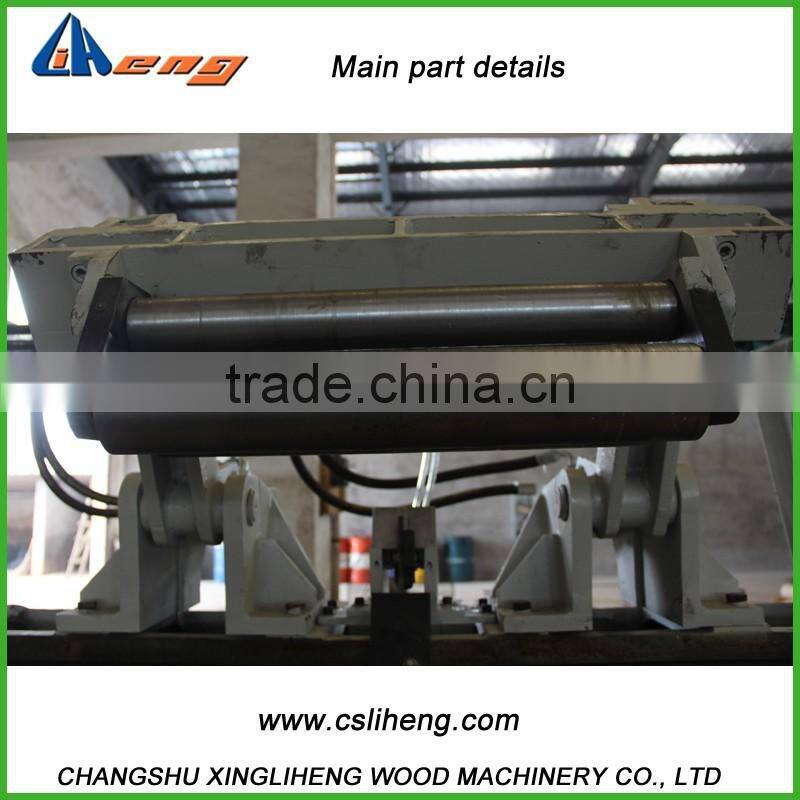

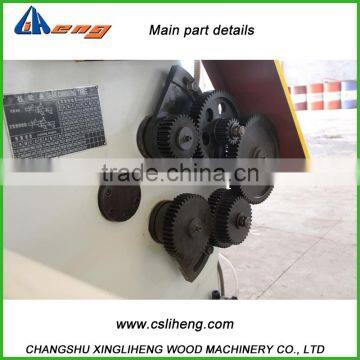

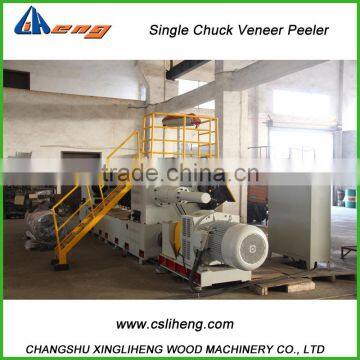

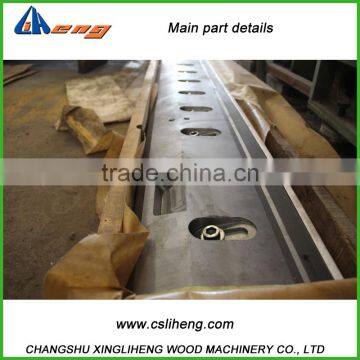

Veneer Rotary Cutting Machine pictures
Lead time: 55 days
Loading port: Shanghai
Packing: Unpacked/wooden case for electric cabinet
Packing type: SKD (semi-knock down)
We have been in this industry for more than 20 years. Rich experiences in manufacturer , ability to export, insalltion, after sales services. This veneer rotary cutting machine is of top quality in China which can provide you high quality veneer with stable and accurate sizes. Reliable and stable in work makes this veneer rotary cutting machine be worthy of your investment.
