10ton/batch unstaurated polyster resin plant for sale

resin adhesive complete production line 6 ton/batch

General information

configuration:composed of  reactor,condenser( vertical and horizontal),oil-water separator,dilute kettle ,buffer tank,vacuum pump,bolier.

material:304/316 stainless steel and Q235 carbon steel.

heating:by electric ,thermal oil, steam  ( use bolier fuel can be nature gas,oil,coal)

output :smallest is used for labratory before mass production about 100kg per batch,from 100kg/batch to 50 ton/batch can meet different requirment.

Application

widely used for  thousands of different kind of resin,like alkyd resin,unsaturated polyster resin,phenolic resin,acrylic resin,epoxy resin ,adhesive etc.

The complete production process:

1.     put the material to the 5000L reactor kettle,start heating ,when the temperature reach about 100 degrees,it will produc gases,and the gas will into the separation column.

2.     after part be cooled by the separation column, the rest gas into horizontal condenser,then condenser will cooling the gas ,after all the water and gas will into the catchment device.

3.     the catchment device,will separate material back to reactor kettle,and exclude the water.(the process may be last about fifteen to twenty hours)

4.     during the reaction process,in order to improve the speed, can extracting vacuum,when reach the suitable time, sampling, assay viscosity,if meet the requiment, then cooling.

5.      when the temperature reach 130 degrees,put the raw materials to dilute kettle,and add Xylene (this kind of material) to dilute kettle, diluting , cooling ,then make the prodction you need.

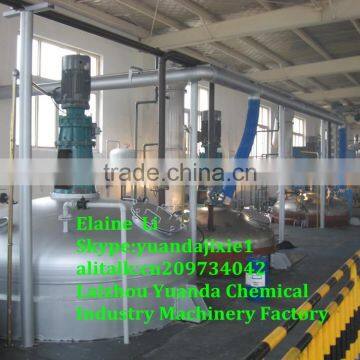

 Picture Show

Any interested about this machine,welcome to contact with me.
