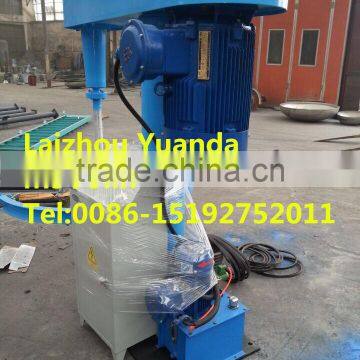

High Speed Dispersing Dissolving Mixer With Automatic Lifting Function
USD $1,100 - $18,000
/ Unit
1 Unit(Min.Order)
- 500 Unit / Units per Month
- Qingdao
You May Like
-
High Speed Mixer,Dispersing Machine Lab Mixing Equipment
-
Pigment Dispersion Machine
-
High Speed Dispersion Machine,Paint Disperser Paint Dissolve Mixer
-
Fully Explosion Proof For Both Water Based And Solvent Based Chemical Dispersion Machine
-
Dispersing Mixing Dissolving Paint Making Machine Lifting Type
-
Mixing Dissolving Paint Making Machine
Product Details
| Condition | New | Mixer Type | Agitator | |
| Product Type | Paint | Application | Liquid | |
| Additional Capabilities | Milling | Place of Origin | Shandong, China | |
| Brand Name | yuanda | Model Number | YD-FS | |
| Max. Loading Capacity | 5000 LTR | Voltage | 220/380/415 V | |
| Power(W) | 1.1-75 W | Dimension(L*W*H) | as modle | |
| Certification | CE marked | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Speed Dispersing Dissolving Mixer With Automatic Lifting Function
1,application: paint ,ink, pigment, resin, glue, adhesive, dye, cosmetic, etc.
2,capacity: 2L-20000L lab scale to large capacity.
3,lifting method; hydraulic Lifting & mechanical Lifting
4,CE certification.
5,Mixing pot can be provided together with the disperser.
6,agitator type:frame,anchor,paddle,etc.
7,double shaft type is available.
Below is main CONFIGURATION of High Speed Disperser for ur ref:
| Motor power | 5.5 KW | 7.5 KW | 15KW | 22 KW | 30 KW | 37KW | 45KW | 75KW |
| Lifting type | Mechanical Lifting | |||||||
| Lifting motor power | 0.5 kw | 0.75 kw | 1.1 kw | 1.5 kw | 1.5 kw | 1.5 kw | 2.2 kw | 2.2 kw |
| Material | Stainless steel(dispersing shaft and head) | |||||||
| Carbon steel(Machine body besides dispersing shaft and head) | ||||||||
| Speed (rpm) | 0-1250 | |||||||
| Dispersing head diameter | 180mm | 200mm | 280 mm | 300 mm | 320 mm | 360 mm | 400 mm | 450 mm |
| Turning angle | 360°C | |||||||
Besides the disperser, here we can also provide:
Complete paint production line,
Three Roller Mill,
Sand Mill,
Horizontal Ribbon Mixer,
Kneader,
Colloid mill,
Complete resin production line,
Floral foam mahine and so on.
Our machines can be customized, leave an inquiry to know more details about price, packing, shiping and price.
