High Speed Pigment Dispersion Machine Factory Price
- 200 Piece / Pieces per Month
- QINGDAO
- T/T
You May Like
-
Hydraulic Lifting Dispersion Machine.Dispersing Mixer
-
High Speed Mixture Disperser/hydraulic Lift Dispersing Machine
-
YD good quality Chemical Emulsifier/Batch Homogenizer
-
Inline high shear emulsifying pump
-
single-stage/two-stage/three-stage High Shear Inline Mixer Homogenizer Pump
-
In-line high shear emulsifying pump
Product Details
| Condition | New | Mixer Type | Other, shaft mixing | |
| Product Type | Paint | Application | Liquid | |
| Additional Capabilities | Other, mixing,emulsifying paint,liquid material | Place of Origin | Shandong, China | |
| Brand Name | YD | Model Number | YD-JB-2 | |
| Max. Loading Capacity | 5000L | Voltage | 220V/380v/415V/440V | |
| Power(W) | 1.1-45KW | Dimension(L*W*H) | Depends | |
| Certification | ISO9001 CE | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

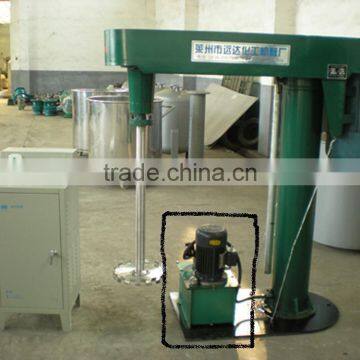

High-speed Industrial dispenser(Hydraulic Lifting)
1.Stable capability
2.Compact structure
3.Multiple tank/vessel
4. Multi-Tank Printing Ink Dispersing Machine
Advantages:
1.One machine with multi-vessels
2.Hydraulic lifting
3.Electric or manual rotation
4.lower euquipment investment
5.Easy to operate and clean
6.Stable capability
Main Features:
1.With electric or manual steering system, easy and convenient to steer the headstock.
2.The adjustable working position enable the machine to work with several tanks, which enhances the machine usage rate greatly, reduce equipment investment and save space.
3.Little air absorption during mixing and dispersing process makes it disperses and dissolves materials to smaller particle size efficiently .
4.No dead corner during mixing. Easy to clean.
5.Various speed control
6.Low noise and long-time continuous operation.
Technical Parameters
motor power(kw) | 5.5 | 7.5/11 | 15/18.5 | 22 | 30 |
lifting motow power(kw) | 0.55 | 0.75 | 1.1 | 1.5/2.2 | 1.5/2.2 |
material | Stainless steel(dispersing shaft and head) | ||||
Carbon steel(Machine body besides dispersing shaft and head) | |||||
Dispersing head diameter | 180mm | 200mm | 280 mm | 300 mm | 320 mm |
speed | 0-1250 | 0-1400rmp(Variable adjustable speed) | |||
turning angle | 360°C | ||||
voltage | 415V/380V/220V(3 phase) | ||||
frequency | 60/50HZ | ||||
Advance we have:
- Experienced stainless steel sanitary vessels supplier.
- Professional design team and sales department for your service.
- Alibaba golden supplier, factory recognized by “ISO9001” Quality Management System etc.
Benefit you get:
- Stable quality——Coming from good materials and technic
- Lower price——Not cheapest but the lowest at the same quality
- Good service——Satisfactory service before and after sale
- Delivery time——25-35 working days for mass production
The chemical and industry machine we can provide like:
SMC production line, BMC production line, resin production line, coating production line, adhesive production line, floral foam production line.
Reactor, Z-Arm mixer, dispersing machine, horizontal mixer, conical mixer, colloid mill, three roller mill, ball mill, sand mill.
