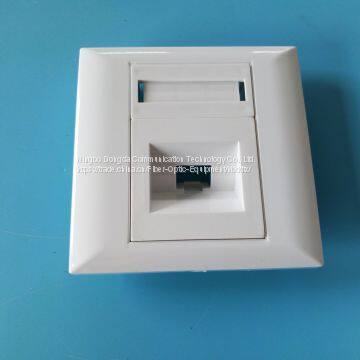

Fiber faceplate

Ningbo East Communications fiber optic desktop box, fiber optic panel, type 86, 120 products introduced:

Type 86 and type 120 fiber optic information panel, also called optical fiber panel or information panel.

The main function of the panel is to fix the module and protect the cable at the outlet of the information, so as to play the role of the screen.

The information panel is not a major component of the wiring affecting the performance of the wiring system,

But throughout the wiring system, there are only a few exposure to the surface products.

Characteristic

1: embedded face frame, convenient installation and disassembly;

2: with protective doors, dust-proof;

3: with identification, easy identification;

4: applies to multi class modules and multimedia interfaces;

5: the use of high-quality plastic PC/ABS, anti-collision, flame retardant, impact resistance;

6: each panel can have 1-3 modules, up to 3 modules;

7: all module combinations can be configured according to customer preferences;

8: all modules are free of soldering mode;

Specifications

Divided into categories such as 86*86, 86*120, etc..

According to the specifications, divided into single and multi.

Divided into RJ45, RJ11 and so on.

Texture of material

Metal materials: spring, wire, black treatment.

Non-metallic materials: ABS engineering plastics.

All materials meet ROHS standards.

matching

The interoperability requirements are used in conjunction with connectors of the same standard series.

application area

Apply to LAN work area, suitable for all types of module installation.

Standard and storage environment

? YD/T 926.1- specification.

? temperature: -40 ~ +70 DEG c;

And humidity: less than 85% (temperature 85 - 3 Deg. C)
