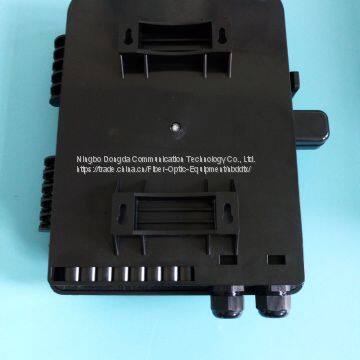

16 core fiber optic fiber box

A brief introduction of products:

Product overview:

Installed on the outdoor wall, pole position, can complete the connection and the distribution function of the cable is convenient, and can meet the placement of optical splitter and light function.

Product features:

1. for exterior wall hanging wall, pole hoop type selection.

2. box material made of high quality SMC material, the appearance of spraying paint, gloss is good. The service life is over 20 years

3. sets of welding, light splitting and distribution in one, can realize the cable connection and direct investment.

4. can into the cable, convenient operation, reasonable structure.

5. fixed cable, grounding is convenient, has enough space for wiring box

6., the use of turn over plate structure, high-density configuration of ports and lighting facilities.

7. double layer structure design, the upper layer is the optical branching device wiring layer, the lower layer is the optical fiber welding layer;

The 8. light splitter module adopts drawer type module design, and has strong interchangeability and versatility;

Three: the main technical parameters (in line with the YD/T988-2007 communication cable box requirements)

1: operating temperature: -40 DEG C, ~+70 DEG c;

2: storage temperature: -40 DEG C, ~+70 c;

Humidity: less than 90% 3: (+30 C);

4: atmospheric pressure: 62Kpa ~ 106Kpa;

5: insulation resistance: the insulation resistance between the grounding device and the case metal parts is not less than 2X104M ohm /500V (DC);

6: withstand voltage: the grounding voltage between the grounding device and the metalwork is not less than 3000V (DC) /1min;

7: insertion loss: IL = 0.3dB (PC); IL = 0.3dB (APC type);

8:: RL = 40dB return loss (PC); RL = 50dB (UPC); RL = 60dB (type APC);

9: interchangeability: less than 0.2dB.

10: grounding voltage level is not less than 3000V (DC) /1min, no breakdown, no arc.

Two, performance index

The basic working temperature: -40 degrees ~+70 degrees;

The basic storage temperature: -40 ~+70 DEG c;

The basic humidity: less than 90% (+30 degrees);

The basic atmospheric pressure: 62Kpa ~ 106Kpa;

The basic: insulation resistance between the grounding device and the metalworking parts insulation resistance is no less than 2X104M /500V (DC);

The basic: high voltage between the grounding device and the high voltage box machine is not less than 3000V (DC) /1min;

The basic insertion loss: IL = 0.3dB (PC); IL = 0.3dB (APC type);

The basic echo loss: RL = 40dB (PC); RL = 50dB (UPC); RL = 60dB (type APC);

The basic interchangeability: less than 0.2dB.

Three, function description

The basic box is made of high quality engineering plastics, has good sealing performance and weatherability, suitable for indoor and outdoor wall, pole installation, protection grade up to IP55 grade;

The basic special indoor cable fixed, ensure indoor cable fixed after the pull-out force is not less than 20N;

The basic quick connector passing hole special, indoor cable terminal quick connector can be carried out in the box body, quick connector terminal operation more convenient;

The basic reliable armored cable introduction, fixing, stripping and grounding protection device, the most fixed 2 outdoor armored cable

The plate structure is designed to make full use of the space of the box, ensure the sufficient bending radius of the fiber, and make it easier for the user to reserve the appropriate redundant optical fiber and reasonable fiber

Made of high quality cold-rolled steel plate waterproof powder electrostatic spraying;

The door is made of high quality outdoor waterproof lock box wall installation quick and convenient installation;

Support all kinds of fiber optic connector management, such as SC, LC, ST, MT-RJ and so on;

The utility model can realize the storage, the convenient maintenance and the maintenance of the optical cable repeatedly
