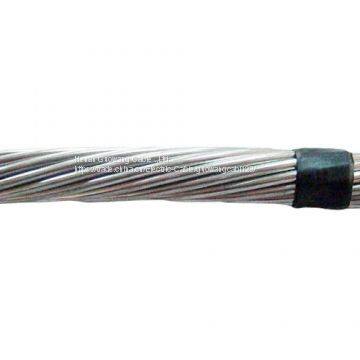

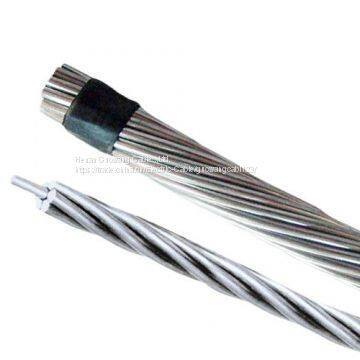

High Purity Acsr Aac Aaac Overhead Conductor

FOB Price

US$ 0.1 - 0.5 / Meter

100 Meters(Min. Order)

Port Tianjin, Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Guowangcable	Place of Origin	China
Type	Other	Application	Overhead
Insulation Material	Other	Jacket	Other, Bare
Conductor Material	Aluminum

Product Description

■ Specifications

?Description
Bare aluminum conductors, especially in the form of Aluminum Conductors Steel Reinforced(ACSR), have been widely used for overhead transmission lines as the most cost-effective and dependable product.
As the name implies, ACSR is a concentrically stranded conductor composed of one or more layers of hard-drawn EC grade aluminum wires over a high strength coated steel core. The core may be single wire or stranded, depending on the size. Because of the numerous stranding combinations of aluminum and steel wires that may be used, it is possible to vary the portions of aluminum and steel so as to obtain the most suitable relation between current carrying capacity and mechanical strength for each application.

?Application
With simple structure, the aluminum conductor steel reinforced is easy to set up and maintain, with low cost and high transmission capacity. it is advantageous for this ACSR to be put up across a valley or river or under other various special geographic conditions. The ACSR has advantages of sound electrical geographic conductivity, high mechanical strength, high tensile strength, etc and the pole distance can be lengthened. it is used for power transmission lines with various voltage levels and plays an important role in the electricity transmission field.

?Construction

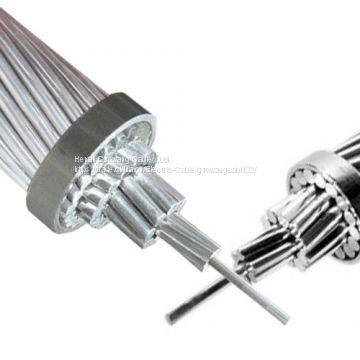

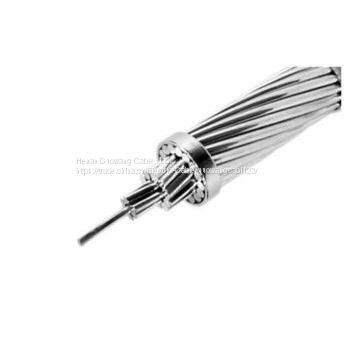

ACSR is a concentric-lay-stranded conductor consisting of a single core wire or a stranded steel central core with one or more layers of 1350 H19 stranded aluminum wires. The steel core wires are protected from corrosion by galvanizing, aluminum-clad alloy or zinc-5% aluminum alloy coating. Standard, high, extra and ultra high strength steel is also available.

?Standard
ASTM B232, BS 215 Part 2 , DIN 48204, IEC 61089, JIS C3110-78, NF C34-120

■ Technical Data

?Parameter

ACSR--Aluminum Conductors Steel Reinforced ASTM B 232
Code name	Area				Stranding and wire diameter		Approx. overall diameter mm	Weight			Nominal breaking load kN	Nominal DC resistance at 20 deg. Ohm/km
	Nominal AWGorMCM	Alum. mm2	Steel mm2	Total mm2	Alum. mm	Steel mm		Alum. kg/km	Steel kg/km	Total kg/km
	Nominal AWGorMCM	Alum. mm2	Steel mm2	Total mm2	Alum. mm	Steel mm		Alum. kg/km	Steel kg/km	Total kg/km
TURKEY	6	13.29	2.19	15.48	6/1.68	1/1.68	5.04	37	17	54	5.24	2.1586
SWAN	4	21.16	3.55	24.71	6/2.12	1/2.12	6.36	58	27	85	8.32	1.3557
SWANATE	4	21.16	5.35	26.51	7/1.96	1/2.61	6.53	58	42	100	10.53	1.3557
SPARROW	2	33.61	5.61	39.22	6/2.67	1/2.67	8.01	92	44	136	12.7	0.8535
SPARATE	2	33.61	8.52	42.13	7/2.47	1/3.30	8.24	92	67	159	16.11	0.8535
ROBIN	1	42.39	7.10	49.49	6/3.00	1/3.00	9.00	116	55	171	15.85	0.6767
RAVEN	1/0	53.48	8.90	62.38	6/3.37	1/3.37	10.11	147	69	216	19.32	0.5364
QUAIL	2/0	67.42	11.23	78.65	6/3.78	1/3.78	11.34	185	88	273	23.62	0.4255
PIGEON	3/0	85.03	14.19	99.22	6/4.25	1/4.25	12.75	233	110	343	29.41	0.3373
PENGUIN	4/0	107.23	17.87	125.10	6/4.77	1/4.77	14.31	294	139	433	37.06	0.2675
WAXWING	266.8	135.16	7.48	142.64	18/3.09	1/3.09	15.45	373	58	431	30.27	0.2133
PARTRIDGE	266.8	135.16	22.00	157.16	26/2.57	7/2.00	16.28	374	172	546	50.29	0.2143
OSTRICH	300	152.00	24.71	176.71	26/2.73	7/2.12	17.28	421	193	614	56.52	0.1906
MERLIN	336.4	170.45	9.48	179.93	18/3.47	1/3.47	17.35	470	74	544	38.23	0.1691
LINNET	336.4	170.45	27.81	198.26	26/2.89	7/2.25	18.31	472	217	689	62.71	0.1699
ORIOLE	336.4	170.45	39.81	210.26	30/2.69	7/2.69	18.83	473	311	784	77.27	0.1704
CHICKADEE	397.5	201.42	11.16	212.58	18/3.77	1/3.77	18.85	555	87	642	43.99	0.1431
BRANT	397.5	201.42	26.13	227.55	24/3.27	7/2.18	19.61	558	204	762	64.69	0.1438
IBIS	397.5	201.42	32.77	234.19	26/3.14	7/2.44	19.88	558	256	814	72.11	0.1438
LARK	397.5	201.42	46.97	248.39	30/2.92	7/2.92	20.44	560	367	927	88.69	0.1442
PELICAN	477	241.68	13.42	255.10	18/4.14	1/4.14	20.70	666	105	771	52.16	0.1193
FLICKER	477	241.68	31.29	272.97	24/3.58	7/2.39	21.49	670	245	915	76.66	0.1199
HAWK	477	241.68	39.42	281.10	26/3.44	7/2.67	21.79	670	308	978	86.65	0.1199
HEN	477	241.68	56.39	298.07	30/3.20	7/3.20	22.40	671	441	1112	105.34	0.1201
OSPREY	556.5	282.00	15.68	297.68	18/4.47	1/4.47	22.35	777	122	899	60.88	0.1022
PARAKEET	556.5	282.00	36.58	318.58	24/3.87	7/2.58	23.22	781	286	1067	88.22	0.1027
DOVE	556.5	282.00	45.94	327.94	26/3.72	7/2.89	23.55	781	359	1140	101.03	0.1027
EAGLE	556.5	282.00	65.81	347.81	30/3.46	7/3.46	24.21	783	515	1298	122.92	0.103
PEACOCK	605	306.58	39.74	346.32	24/4.03	7/2.69	24.20	849	311	1160	95.88	0.0945
