Welding Cable Butyl Rubber Sheathed 1000 V Or Less Single Conductor 22mm Sq X1c
- Tianjin, Qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
-
Power Transmission 4*240MM2 Aluminum Power Cable XLPE/SWA/ALUMINUM
-
Underground Cable Xlpe Armoured Cable Manufacturers 70mm Xlpe 4 Core Cable
-
Pvc Cable Flexible Stranded Annealed Copper Class 5 1 Core X 1.5 Mm2 Red Colour H07v K 450 750v
-
H05SS-F Silicone Rubber Insulated Cables and Multicore Wires
-
High Purity Acsr Aac Aaac Overhead Conductor
-
Unarmored XLPE Cable Price 0.6/1kV Copper Conductor PVC Jacket Power Cable Manufacturer With Factory Price
Product Details
| Brand Name | Guowangcable | Place of Origin | China | |
| Type | Low Voltage | Application | Military | |
| Insulation Material | PVC | Jacket | Rubber | |
| Conductor Material | Copper |
Product Description
■ Specifications
?Application
These cables are suitable for welding equipment,charger machine in industry , in automated welding equipment, in tooling constructions, automobile and shipbuilding as well as for hand-held electrodes in workshops and at building sites.
Robust construction makes these cables resistant to low and high temperatures, fire, ozone and radiation, oils, acids, greases and gasoline. These flexible and robust current-carrying cables are suitable for use at high mechanical loads in dry indoors.
?Construction

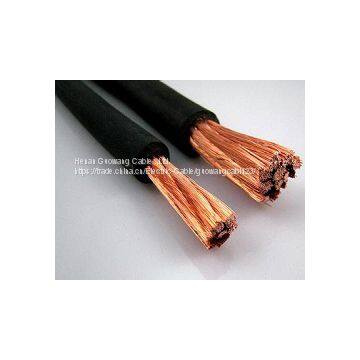

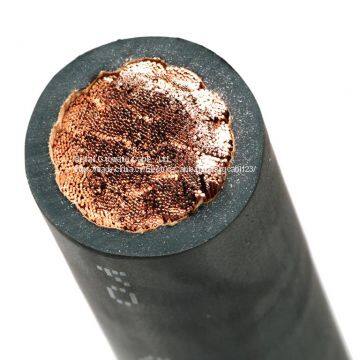

Conductor : Flexible bare annealed copper wire or tinned copper wire
Insulation: PVC or Rubber Material or EPR
Sheath: PVC or Rubber Material or CSP
No.Cross-section 10mm2-185mm2

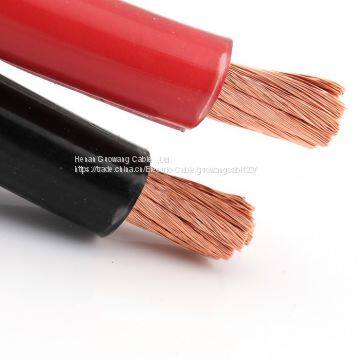

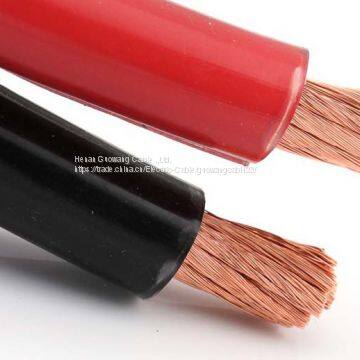

Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
?Features
1. Soft Cables, having good bending properties
2. The sheath material made of natural rubber or chloroprene rubber mixture,
can be applied to different situations, good electrical physical properties
3. Chloroprene rubber mixture with heat oil and retardant performance
4. The maximum continuous operating temperature of the cable is 65 ℃
5.Color:Black, Orange, Red or Yellow Blue jacket, single & double insulated.
?Standard
International: IEC 60502, IEC 60228, IEC60245-6:1994
China: GB/T 12706.1-2008 GB/T 9330-2008
Other standards such as BS,DIN and ICEA upon request
■ Technical Data
WElDING CABLE
Nominal Sectional Area | No. and Diameter of wire | Thickness of Section Sheath | Overall Diameter | Max. Conductor Resistance at 20℃ | Reference Weight | ||
Min. | Max. | YH | YHF | ||||
m㎡ | mm | mm | mm | mm | ≤Ω/km | kg/km | kg/km |
10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 316.6 | 331.15 |
35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 592.47 | 610.55 |
70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 790 | 817.52 |
95 | 2997/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 1066.17 | 1102.97 |
120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 1348.25 | 1392.55 |
150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.129 | 1678.5 | 1698.72 |
185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 1983.8 | 2020.74 |
