Home > Products > Mining Machinery Library > 2013 Good Performance Crawler Drilling Rig for Drilling Job
2013 Good Performance Crawler Drilling Rig for Drilling Job
- Qingdao or other China main port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Model Number | KY120 | |
| Usage | Other, drilling borehole for quarry, mining and construction | Dimension(L*W*H) | 5100x2030x2020mm | |
| Weight | 3.3t | Certification | ISO | |
| Warranty | 15 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
crawler drilling rigpowerful & reliable engine
adjustable boom
reliable hydraulic system & pump sets
humanized design
It is widely used in quarry, railway, road, water and electricity, open-pit mines and construction work site to do deep or medium-deep rock hole drilling operations. Woring with the air compressor and the impactor(DTH hammer), it can drill horizontal, vertical, inclined blast hole, pre-hole and anchor bolt holes.

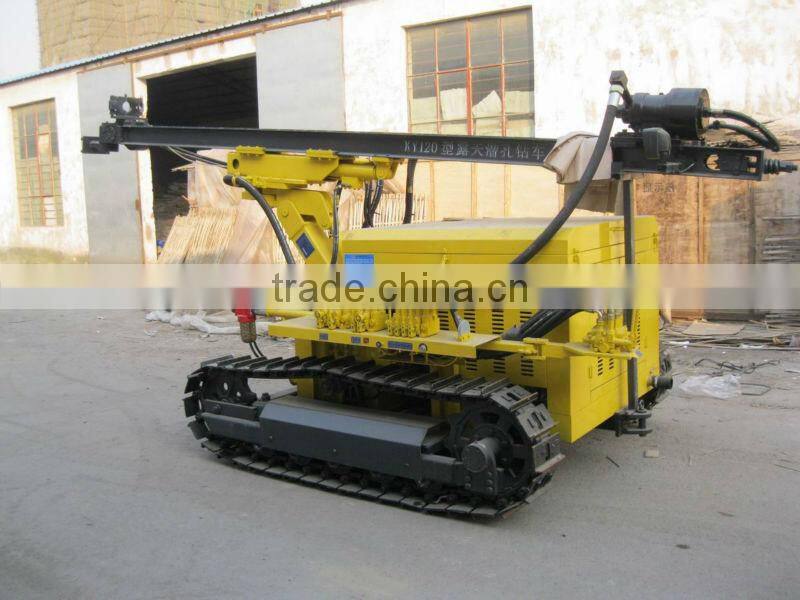

Specifications of Crawler Drill KY120
Rock Rigidity: f=6-20
Dia. of hole: 80-115 mm
Optimum Drilling Depth: 25 m
Working Pressure: 1.0-1.4 Mpa
Air Consumption: ≥13m3/min.
Rotation Speed: 0-65 rpm
Torque: 1400 N•m
Lift power: 17 KN
Dimensions: 5100x2030x2020mm
Weight: 3300 kg
Drive System: YC 2108 Engine
Recommended Mobile Screw Air Compressor: LGCY-13/13

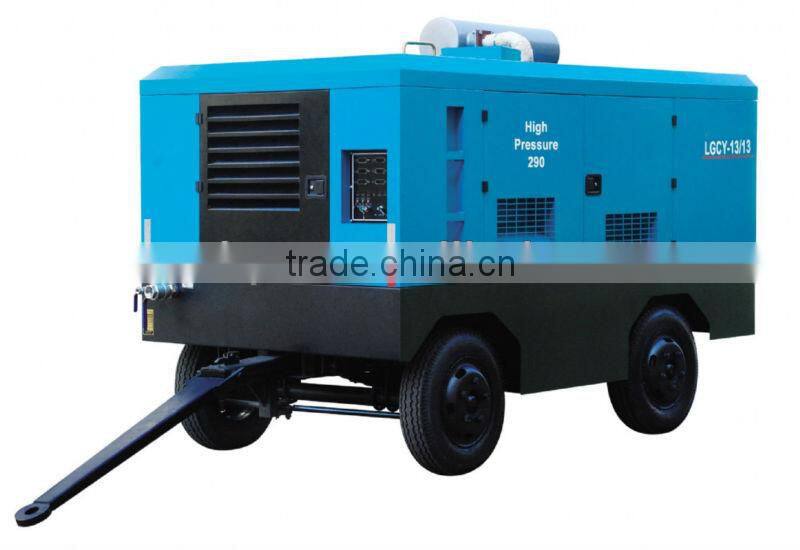

Specification of Matched Mobile Screw Air Compressor LGCY-13/13
Capacity: 13m3/min.
Working pressure: 1.3MPa
Corresponding diesel engine: Cummins 6BTA5.9-C180 (132kw)
Dimensions: 3600x1900x2200 mm
Weight: 3500 kg
