CN Standard Type PSG Series Symons Aggregate Cone Crusher for Sale
- 68 Set / Sets per Month
- Qingdao; Shanghai; Tianjin etc.
- T/T Credit Card
You May Like
-
China Good Quality Long Service Life Dolerite Rock Crushing Production Line
-
2016 dolerite stone crushing production line for Africa
-
China good price hard dolerite quarry crusher plant with good quality
-
Unqiue factory best price perfect stone Symons cone crusher for sale
-
High Performance Diesel Jaw Crusher with Small Discharge Size for Sale
-
China good price 200tph hard rock Symons cone crusher for sale
Product Details
Condition | New | Type | Cone Crusher | |
Application | Granite, Gravel, Marble, Copper Ore, Quarry, Granite, Aggregate, Marble,Quartz, Sand | Motor Type | AC Motor | |
Power(W) | 75kw | Capacity(t/h) | 118-163 t/h | |
Place of Origin | Henan, China | Brand Name | UNIQUE | |
Model Number | PSGB-0918 | Dimension(L*W*H) | 2656x1636x2241 | |
Weight | 9980kg | Certification | CE,ISO9001:2000 | |
Warranty | 15Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Hot Selling Symons Cone Crusher / Mining Cone Crusher Machine
Advantages of Symons Cone Crusher
1. high crushing ratio, high efficiency, high capacity, low operating cost, easy adjustment and economical operation.
2. Our symons cone crusher has exported to many countries, such as Chile, Oman, Philippines, Tanzania etc.
3. It is made of high quality raw material and has reasonable structure design. So it has longer running performance and even granularity.
4. The middle and large size symons cone crusher adopts hydraulic clear chamber. That reduces its down time.
Application of Symons Cone Crusher for Sale
It is widely used in the industries of metallurgy, building material, road construction, chemical engineering and silicate. Symons cone crusher is suitable for crushing all kinds of ores and rocks with hardness of medium or above.
Type of Symons Cone Crusher for Sale
1. This machine has two types: the standard type and the short head type.
2. Standard type has larger discharge opening, and produce coarser crushed product. It is generally used for medium and coarse material,
3. Short head type has steep crushing cone, which can influence the discharge size, and it is mainly used for produce fine crushed products.
Parameters of Symons Cone Crusher
specifications | style | chamber type | broken cone main diameter(mm) | Adjustable Range of Output Size(mm) | mouth edge feeding size in the min recommended discharging port(mm) | max feeding size(mm) | capacity(t/h) | motor power(kw) | weight(kg) | overall dimension(L×W×H)(mm) |
900 | PSGB-0910 | standard thin | 914 | 9-22 | 102 | 85 | 45-91 | 75 | 9980 | 2656×1636×2241 |
PSGB-0917 | standard thick | 13-38 | 1775 | 150 | 59-163 | |||||
PSGB-0918 | standard thicker | 25-38 | 178 | 150 | 118-163 | |||||
PSGB-0904 | Short head thin | 3-13 | 41 | 35 | 27-90 | 10530 | ||||
PSGB-0906 | Short head medium | 3-16 | 76 | 65 | 27-100 | |||||
PSGB-0907 | Short head thick | 6-19 | 102 | 85 | 59-129 | |||||
1300 | PSGB-1313 | standard thin | 1295 | 13-31 | 137 | 115 | 109-181 | 160 | 22460 | 2983×1866×3156 |
PSGB-1321 | Standard medium | 16-38 | 210 | 178 | 132-253 | |||||
PSGB-1324 | standard thick | 19-51 | 241 | 205 | 172-349 | |||||
PSGB-1325 | standard thicker | 25-51 | 259 | 220 | 236-358 | |||||
PSGD-1306 | Short head thin | 3-16 | 64 | 54 | 36-163 | 22590 | ||||
PSGD-1308 | Short head medium | 6-16 | 89 | 76 | 82-163 | |||||
PSGD-1310 | Short head thick | 8-25 | 105 | 89 | 109-227 | |||||
PSGD-1313 | Short head thicker | 16-25 | 133 | 113 | 209-236 | |||||
1600 | PSGB-1620 | standard thin | 1676 | 16-38 | 209 | 178 | 181-327 | 220 | 43270 | 3941×2954×3771 |
PSGB-1624 | Standard medium | 22-51 | 241 | 205 | 258-417 | |||||
PSGB-1626 | standard thick | 25-64 | 269 | 228 | 299-635 | |||||
PSGB-1636 | standard thicker | 38-64 | 368 | 313 | 431-630 | |||||
PSGD-1607 | Short head thin | 5-13 | 70 | 60 | 90-209 | 43870 | ||||
PSGD-1608 | Short head medium | 6-19 | 89 | 76 | 136-281 | |||||
PSGD-1613 | Short head thick | 10-25 | 133 | 113 | 190-336 | |||||
PSGD-1614 | Short head thicker | 13-25 | 133 | 113 | 253-336 |
Pre-sale support
Select equipment model;
Design and manufacture products according to clients' special requirement;
Train technical personnel for clients.
Services during the sale
Pre-check and accept products ahead of delivery;
help clients to draft solving plans.
After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.

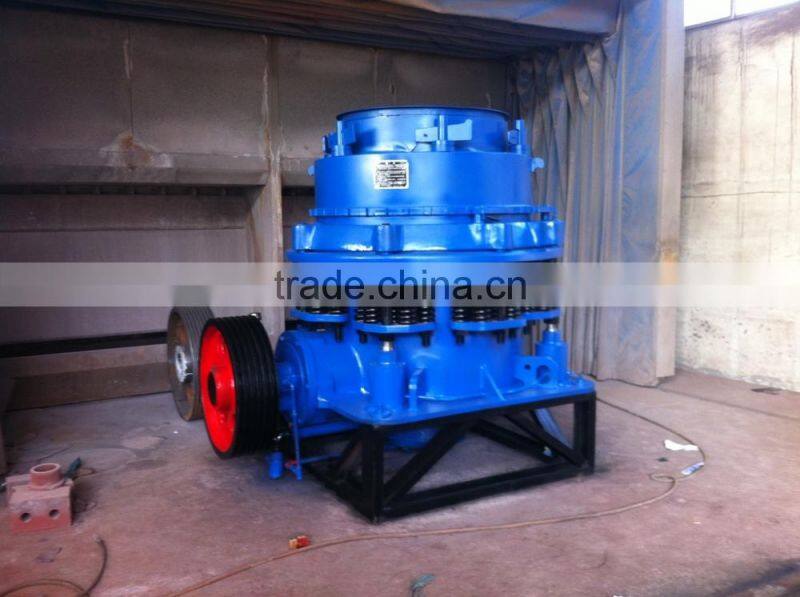

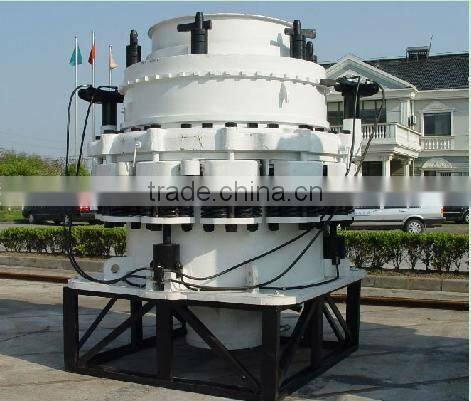

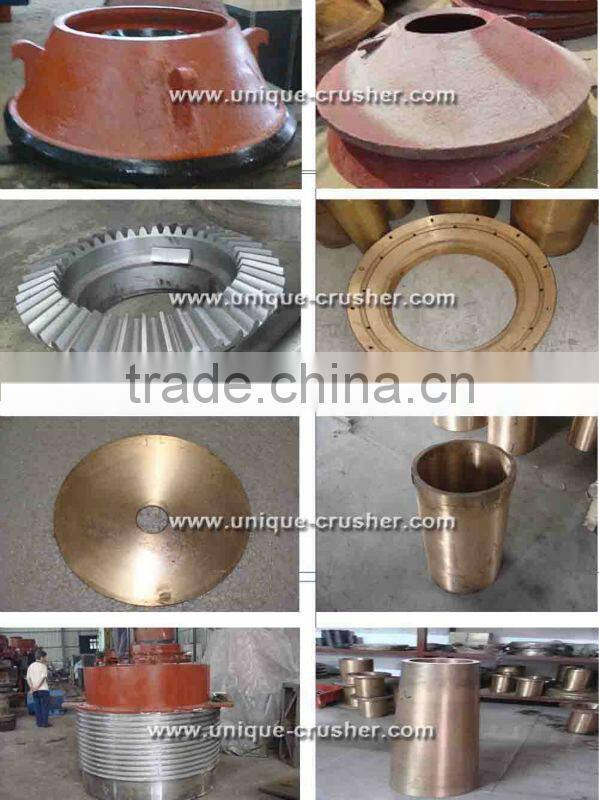

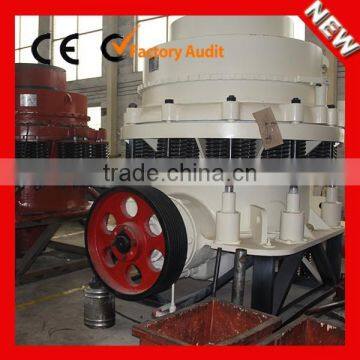

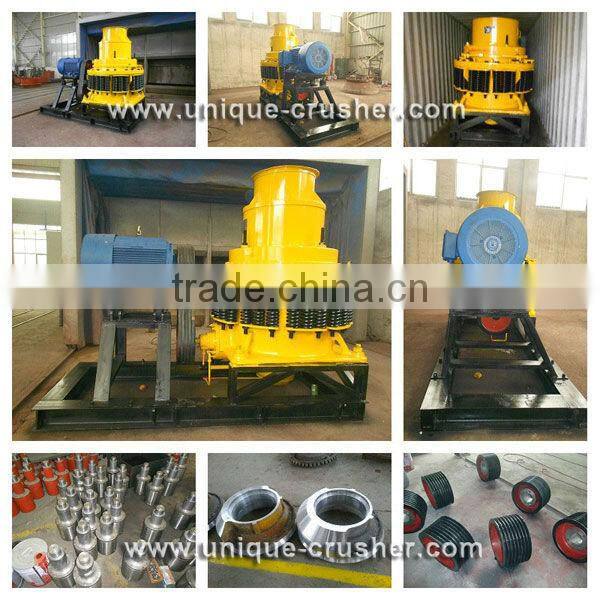

Photos of Mining Cone Crusher Machine
Zhengzhou Unique Industrial Equipment Co., Ltd,a reliable and professional supplier of Symons Cone Crusher for Sale
