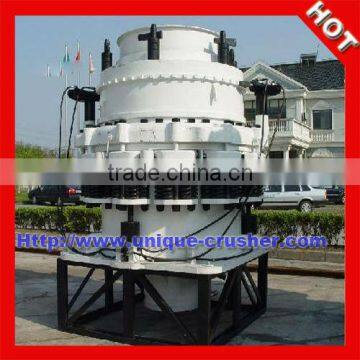

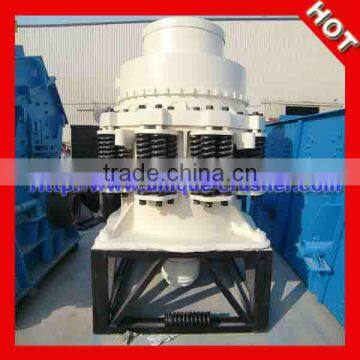

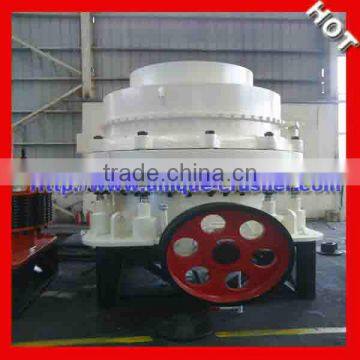

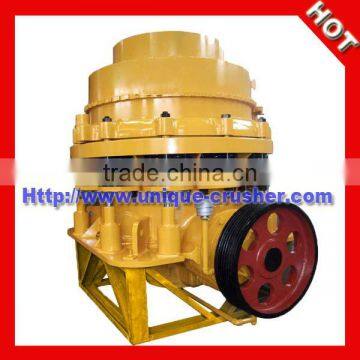

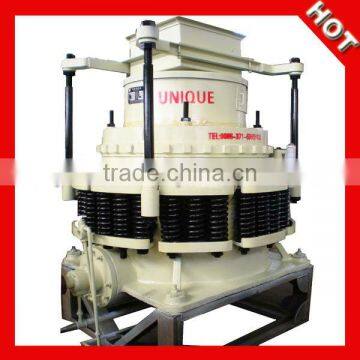

Symons Rock Breaking Machine for Basalt
- 80 Set / Sets per Month
- Qingdao; Shanghai; Tianjin etc.
- T/T
You May Like
Product Details
| Condition | New | Type | Other, symons cone crusher | |
| Capacity(t/h) | 45-635 | Place of Origin | Henan, China | |
| Brand Name | UNIQUE | Model Number | PSGB\PSGD | |
| Certification | ISO | Warranty | More than 12 months | |
| Application | Quarry, Granite, Aggregate, Marble,Quartz, Sand |
Product Description
Specifications
Symons Rock Breaking Machine for Basalt:1.Used for medium, fine and super fine crushing
2.Easy maintenance
2013 Symons Rock Breaking Machine for Basalt
Application of Good Quality Symons Rock Breaking Machine for Basalt
Symons cone crusher is widely used in the industries of metallurgy, building material, road construction, chemical engineering and silicate. It is suitable for crushing all kinds of ores and rocks with hardness of medium or above.
Features of Good Quality Symons Rock Breaking Machine for Basalt
Good Quality Symons cone crusher has the following advantages: High crushing ratio, high efficiency, high capacity, low operating cost, easy adjustment and economical operation.

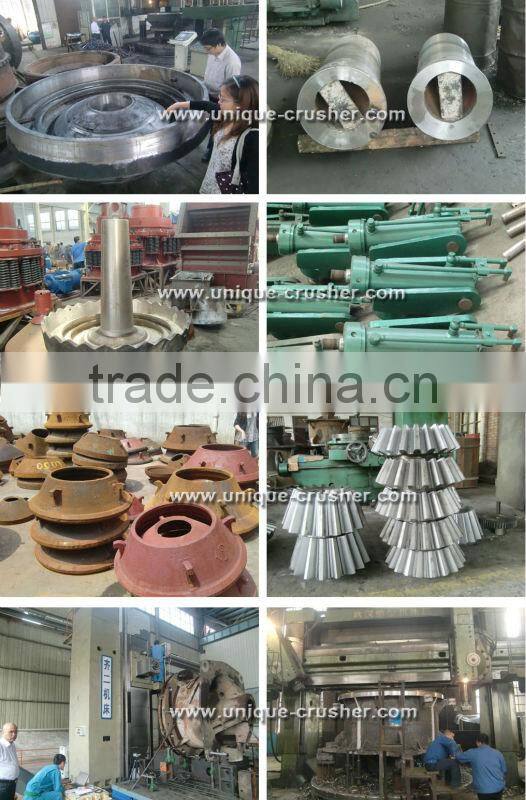

The quality of material use for components and reasonable design of construction contributes to its longer running performance and even granularity of the crushed product in order to reduce the circulation load. Furthermore, by introducing the hydraulic clear chamber into the crusher of middle and large size, the down time is reduced accordingly. The customers can choose different type of chamber upon different request freely, because the wide ranges of products are provided.

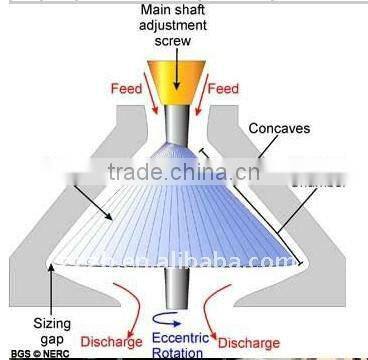

Working Principle of Good Quality Symons Rock Breaking Machine for Basalt

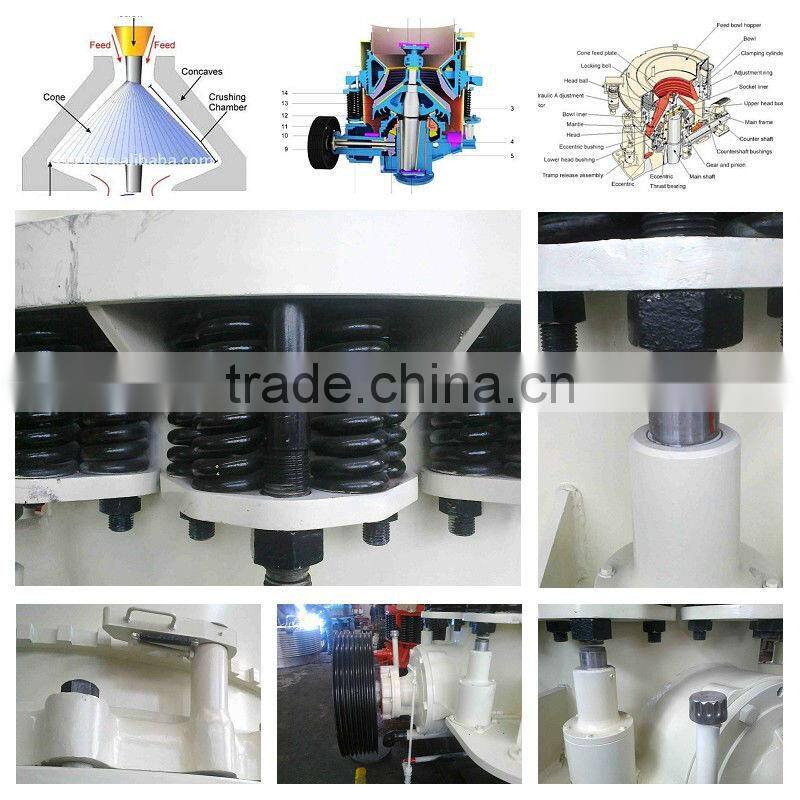

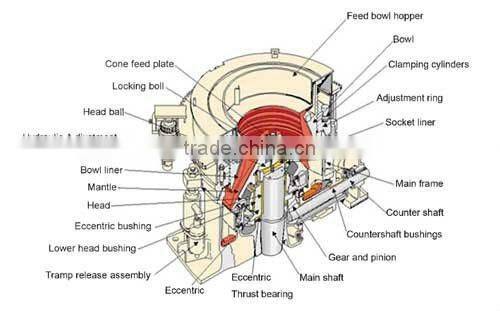

Symons Cone Crusher adopts grease sealing so as to prevent the watering and draining system from being blocked and avoid the defect of easy mix of water and oil. The spring safety system is the protection unit against overload, and it can keep the crushing chamber from damaged by foreign substance or iron pieces.
Types of Good Quality Symons Rock Breaking Machine for Basalt
Symons cone crusher is divided into two types: the standard type and the short head type. Normally the large size of material is fed into the standard type, which means that the size of discharge is also coarser; and the small size of the material is fed into the short head type due to its steep crushing cone, which will unavoidably influence the size of discharge, therefore, it is much more suitable for producing the fine goods. Consequentially the standard type is generally used for medium and coarse material, and the short head type Symons cone crusher is for medium and fine material.
Parameters of Good Quality Symons Rock Breaking Machine for Basalt
| specifications | style | chamber type | broken cone main diameter(mm) | Adjustable Range of Output Size(mm) | mouth edge feeding size in the min recommended discharging port(mm) | max feeding size(mm) | capacity(t/h) | motor power(kw) | weight(kg) | overall dimension(L×W×H)(mm) |
| 900 | PSGB-0910 | standard thin | 914 | 9-22 | 102 | 85 | 45-91 | 75 | 9980 | 2656×1636×2241 |
| PSGB-0917 | standard thick | 13-38 | 1775 | 150 | 59-163 | |||||
| PSGB-0918 | standard thicker | 25-38 | 178 | 150 | 118-163 | |||||
| PSGB-0904 | Short head thin | 3-13 | 41 | 35 | 27-90 | 10530 | ||||
| PSGB-0906 | Short head medium | 3-16 | 76 | 65 | 27-100 | |||||
| PSGB-0907 | Short head thick | 6-19 | 102 | 85 | 59-129 | |||||
| 1300 | PSGB-1313 | standard thin | 1295 | 13-31 | 137 | 115 | 109-181 | 160 | 22460 | 2983×1866×3156 |
| PSGB-1321 | Standard medium | 16-38 | 210 | 178 | 132-253 | |||||
| PSGB-1324 | standard thick | 19-51 | 241 | 205 | 172-349 | |||||
| PSGB-1325 | standard thicker | 25-51 | 259 | 220 | 236-358 | |||||
| PSGD-1306 | Short head thin | 3-16 | 64 | 54 | 36-163 | 22590 | ||||
| PSGD-1308 | Short head medium | 6-16 | 89 | 76 | 82-163 | |||||
| PSGD-1310 | Short head thick | 8-25 | 105 | 89 | 109-227 | |||||
| PSGD-1313 | Short head thicker | 16-25 | 133 | 113 | 209-236 | |||||
| 1600 | PSGB-1620 | standard thin | 1676 | 16-38 | 209 | 178 | 181-327 | 220 | 43270 | 3941×2954×3771 |
| PSGB-1624 | Standard medium | 22-51 | 241 | 205 | 258-417 | |||||
| PSGB-1626 | standard thick | 25-64 | 269 | 228 | 299-635 | |||||
| PSGB-1636 | standard thicker | 38-64 | 368 | 313 | 431-630 | |||||
| PSGD-1607 | Short head thin | 5-13 | 70 | 60 | 90-209 | 43870 | ||||
| PSGD-1608 | Short head medium | 6-19 | 89 | 76 | 136-281 | |||||
| PSGD-1613 | Short head thick | 10-25 | 133 | 113 | 190-336 | |||||
| PSGD-1614 | Short head thicker | 13-25 | 133 | 113 | 253-336 |
Zhengzhou Unique Industrial Equipment Co., Ltd, a reliable and professional supplier of Symons Rock Breaking Machine for Basalt .
