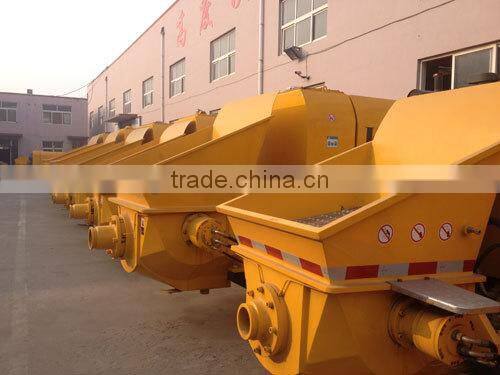

Hot Sale HBT60S-9-75 Trailer Mounted Concrete Pump
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Power Type | Diesel | |
| Place of Origin | Henan, China | Brand Name | UNIQUE | |
| Model Number | HBT60S-9-75 | Power(W) | 75kw | |
| Weight | 6000kg | Certification | ISO | |
| Warranty | More than one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
HBT60S-9-75 Trailer Mounted Concrete Pump :1.Efficient hydraulic system
2.Large displacement pumping systems
3.Used Widely
High Quality HBT60S-9-75 Trailer Mounted Concrete Pump
Features of Trailer Mounted Concrete Pump :
1. Efficient hydraulic system, new high-speed commutation with pumping exchange efficiency being increased by 12%
2. Large displacement pumping systems, the suction efficiency having been increased by 6% to meet the needs of a variety of operating conditions;
3. Full hydraulic commutation open system, high hydraulic oil cleanliness, low oil temperature, small impact;
4. The main cylinder waterproof seal patented technology, effectively preventing water from entering the hydraulic system to avoid hydraulic oil emulsion;
5. Advanced S valve system, good sealing performance, economic and durable quick-wear parts, easy replacement;
6. Hydraulic and electrical components adopt international famous brands with high reliability.
Parameters of Trailer Mounted Concrete Pump :
Name | HBT60S-9-75 | HBT80S-13-110 | HBT80S-16-132 | ||||||
Item | Unit | S Tube Concrete Pump | S Tube Concrete Pump | S Tube Concrete Pump | |||||
Theoretic concrete delivery volume | Low pressure | M3/h | 60 | 80 | 80 | ||||
High pressure | 36 | 47 | 46 | ||||||
Theoretic concrete delivery pressure | Low pressure | Mpa | 5.7 | 7.6 | 9.6 | ||||
Highe pressure | 9 | 12.5 | 15.7 | ||||||
Hydraulic pressure | Mpa | 26 | 32 | 32 | |||||
Electric motor speed | r/min | 1480 | 1480 | 1480 | |||||
Main oil pump | Original German HAWE/Rexroth and Japanese Kawasaki | ||||||||
Main cylinder dia./pole dia. × stroke | mm | 125/80*1650 | 125/80*1650(1800) | 140/90*1650(1800) | |||||
Delivery cylinder dia. | mm | 200 | 200 | 200 | |||||
Electric motor power | Kw | 75 | 110 | 132 | |||||
Capacity of hydraulic oil tank | L | 500 | 500 | 500 | |||||
Hopper capacity | M3 | 0.6 | 0.6 | 0.6 | |||||
Overall Weight | Kg | 6000 | 6200 | 6500 | |||||
Max. delivery distance | Vertical | m | 150 | 180 | 250 | ||||
Horizontal | m | 600 | 700 | 1000 | |||||
