2013 Best 1000 Liter Concrete Mixer JS1000

Specifications

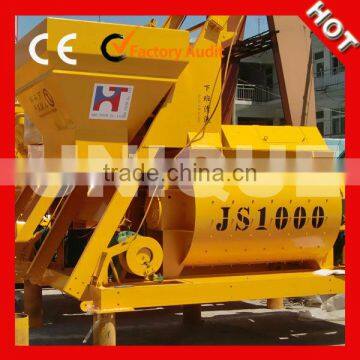

JS1000 1000 Liter Concrete Mixer

Description of JS1000 1000 Liter Concrete Mixer :
JS500-1500 Concrete Mixer developed by our company is widely used by our global users. This machine can be used as a separated mixing machine or used as the supporting machine of the ready mix concrete plant. When matched with batching plant, they can form a simple mixing plant.

Features of JS1000 1000 Liter Concrete Mixer :
1. As a miniature double-horizontal-shaft forced type concrete mixer, this concrete mixing machine features short mixing time, good homogeneity and reliable operation.
2. Shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace.

Application of JS1000 1000 Liter Concrete Mixer :
This concrete mixer can be used to mix stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.

Technical Specification of JS1000 1000 Liter Concrete Mixer :

Model: JS1000

Discharge volume: 1000L

Charging volume: 1600L

Theoretical capacity: ≥50m³

Aggregate sizes: ≤60/80mm

Working circle: 60s

Mixing blade

Speed: 25.5r/min

Quantity: 2×8

Mixing motor

Model: Y225S-4

Power: 37 kw

Lifting motor

Model: YEZ160L-4

Power: 11 kw

Pump motor

Model: KQW65-100

Power: 3 kw

Weight: 9880kg

Dimensions (L x W x H): 4640x2250x2250 mm
