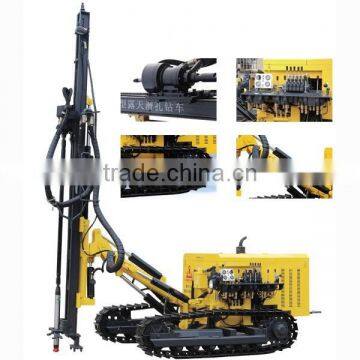

2015 China Top Quality High Efficiency Track Drill KG920B
- Shanghai Qingdao Tianjin ect.
- T/T Credit Card
You May Like
-
Well-selling Blast Borehole Drilling Machine KY120 for Algeria Market
-
2015 Pure Penumatic Quarry Crawler Drill for Mining
-
China Top Performance Upgraded Design Hydraulic Crawler Drill Long Service Life
-
2015 China Factory Crawler Type 33KW (4 cylinder engine) Limestone Drilling Machine for African Quarry Plant Operation
-
China Brand Low Cost High Quality Small Crawler Water Well Drilling Rig in 2015
-
China Unique Engineering Small Hydraulic Tracked Drill KY100J for Limestone Blasthole/Borehole Drilling
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Brand Name | Kaishan | |
| Model Number | KG920B | Power(W) | 58kw | |
| Dimension(L*W*H) | 4400x2200x2050mm | Weight | 4200kg | |
| Certification | ISO, CCC | Warranty | 15 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
2015 China Top Quality High Efficiency Track Drill KG920B
Features
1. Powerful feeding mechanism and rotating system
2. Adjustable boom
3. Reliable Hydraulic Pump System
4. Centralized Operating System
Specification
Model
Specification |
KG920B |
Improved by: | KY125 |
Rock hardness | F=6-20 |
Hole diameter(mm) | 80-115 |
Drill depth(m) | 25 |
Pressure (Mpa) | 1.0-1.7 |
Air consumption (M3/min) | 9-16 |
Rotating speed (Km/h) | 0-65 |
Lifting capacity (KN) | 17 |
Drill rod specification(mm) | 64×3000 /76×3000 |
Gradeability | 30° |
Ground clearance(mm) | 290 |
Walking speed (km/h) | 2.0 |
Drill arm rising angles (°) | -25~+50 |
Drill arm swing angle (°) | ±45 |
Carriage swing angle(°) | -45~+100 |
Carriage pitch angle (°) | -50~+135 |
Carriage Compensation(mm) | 900 |
Overall Dimension (L*W*H)(mm) | 4000×2270 ×2050 |
Total Weight (Kg) | 3300 |
Note: | Pneumatic -hydraulic |
Comparsion Between KY125 and KG920B
| KY125 | KG 920B | Advantages |
Travel parts | QJM Motor (Direct connection) | Mortor+Reducer structure | Reduce pressure of motor, improve the service life of the motor |
Travel pressure | 14-16 Mpa | 11 Mpa | |
Drill boom |
| New type drill boom | Simultaneously drill horizontal hole and vertical hole |
Hydraulic system | 19.2 pump | 30 pump,big diameters, new type valve groups, new type joint. | Flow is increased, resistance is reduced. |
Air control system | Ball valve | side valve typec oncussion relief valve | Easy operation |
Rotation speed | 55 r/min(1700) | 83 r/min (diesel engine 1700r/min) 107 r/min(diesel engine 2200 r/min) | Improved by 50% |
Advance speed | 336mm/s | 450mm/s | Improved by 33% |
Matched screw compressor
Drill bit
